Installing Front Side Member

Information:

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive  .
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed  .
• Do not begin bonding work until all materials and tools necessary for later repair work are available  .

1. Install front side member and check that it fits perfectly. Check gap dimensions. Refer to WM 6X00IN GAP DIMENSIONS .

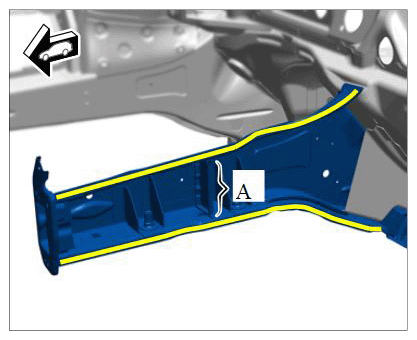

   1. 1.1. Apply foam filler to the body in area -A-  . Refer to WM 5X00IN WORKING WITH BODY STRUCTURAL FOAM (2010 - 14) , WM 5X00IN WORKING WITH BODY STRUCTURAL FOAM (2014 -) .

      Make sure that all openings and gaps between the body and C-pillar reinforcement are closed off with the sealing compound.

   2. 1.2. Apply adhesive to the areas marked in yellow. Refer to WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE 000.043.206.30 , WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00 .. Application depth: 3.0 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Applying adhesive

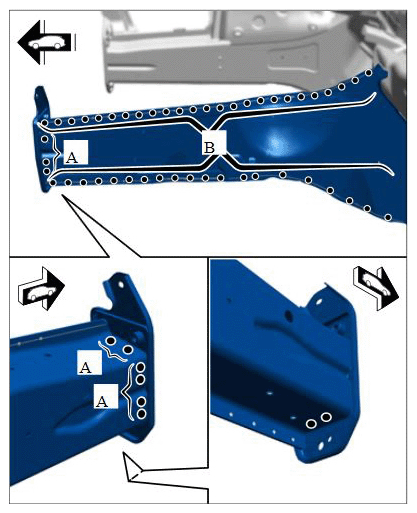

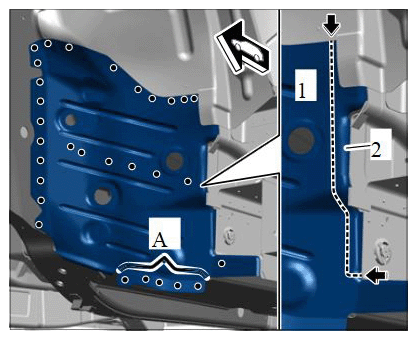

2. Plug-weld area -A-  using inert gas.
   1. 2.1. Resistance spot-weld area -B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Installing front side member

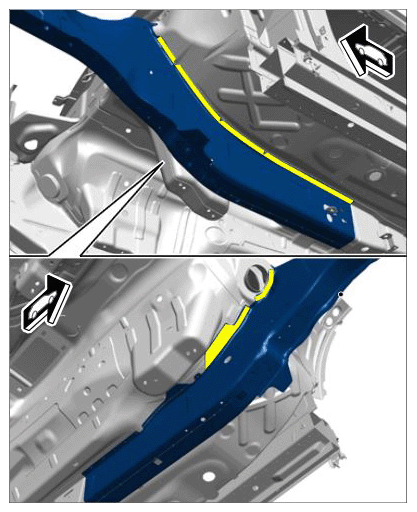

3. Apply adhesive to the areas marked in yellow. Refer to WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE 000.043.206.30 , WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00 .. → Application depth: 3.0 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Applying adhesive

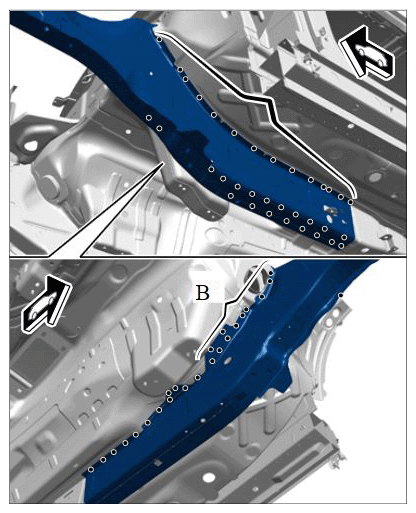

4. Spot-weld front side member using inert gas and set blind rivets.
   1. 4.1. Rivet in front side member in the marked areas -B-.  → BLIND RIVET 999.190.227.01

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Installing front side member

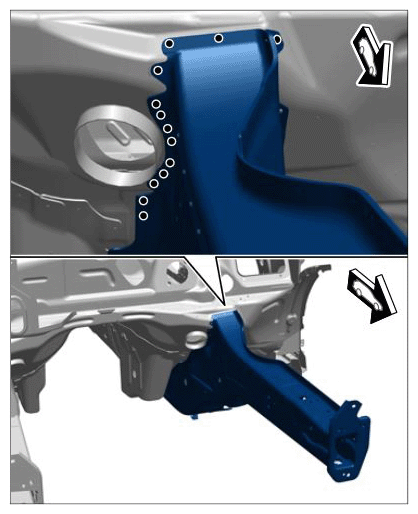

5. Rivet in front side member. → BLIND RIVET 999.190.227.01

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Installing front side member

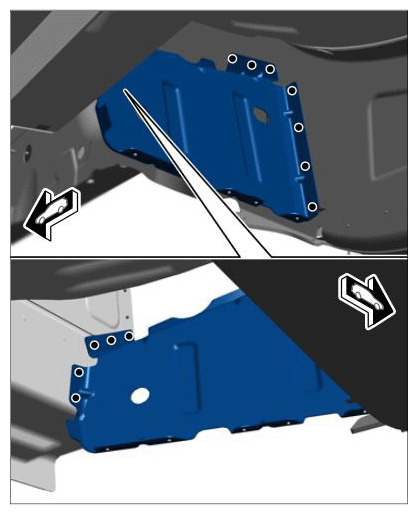

6. Plug-weld reinforcement using inert gas.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Installing reinforcement

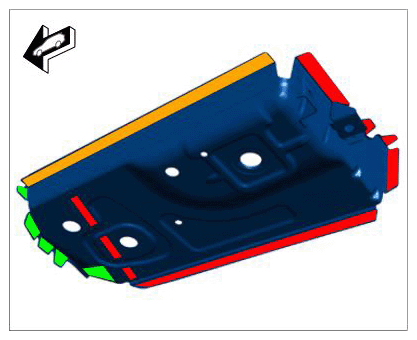

7. Apply adhesive to the areas marked in orange. Refer to WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE 000.043.206.30 , WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00 .. Application depth: 3.0 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Applying adhesive

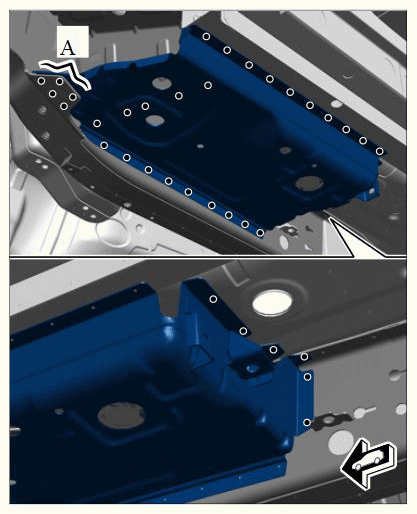

8. Spot-weld the mounting using inert gas and set blind rivets.
   1. 8.1. Resistance spot-weld area -A-  .
   2. 8.2. Rivet in the mounting in area -B-  . → BLIND RIVET 999.190.229.01

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Installing mounting

9. Plug-weld front wheel housing extension using inert gas.
   1. 9.1. Resistance spot-weld area -A-  .
   2. 9.2. Apply a full weld to the area -arrows-  using inert gas.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Installing front wheel housing extension
