Removing Front Side Member (Front Section)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

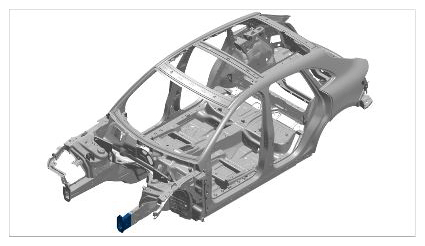

Installation position of front side member (section)

Information:  The final dimension is measured from the new front side member (section).

1. Make a rough cut on the front side member (section).
   1. 1.1. Mark and make cuts. → Distance: 100 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

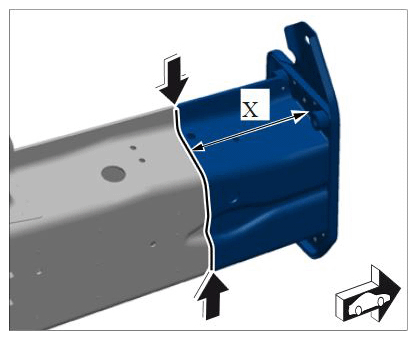

   Removing front side member (section)
