Model Values

Location	Description	Type	Basic value
Fastening screws for guide wedge	Item 1	Tightening torque	8 Nm (6 ftlb.)

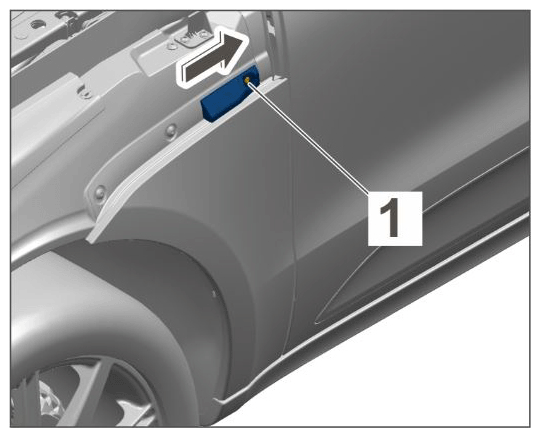

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Guide wedge
Fastening screw for guide wedge (retrofitted)	Item 1	Tightening torque	8 Nm (6 ftlb.)

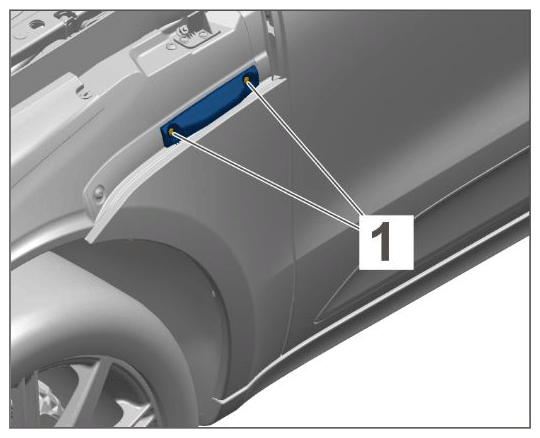

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Guide wedge (retrofitted)
Fastening screw for outer wing		Tightening torque	10 Nm (7.5 ftlb.)

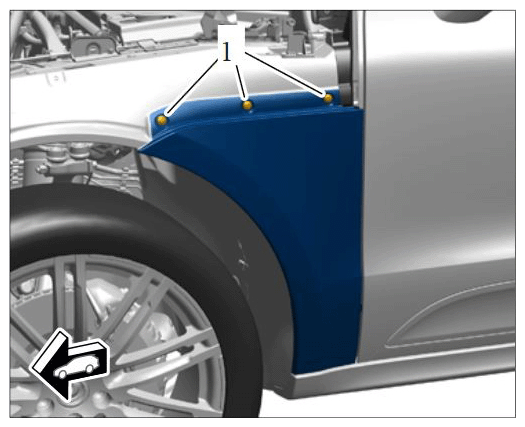

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for outer wing
Fastening screw for inner wing		Tightening torque	10 Nm (7.5 ftlb.)

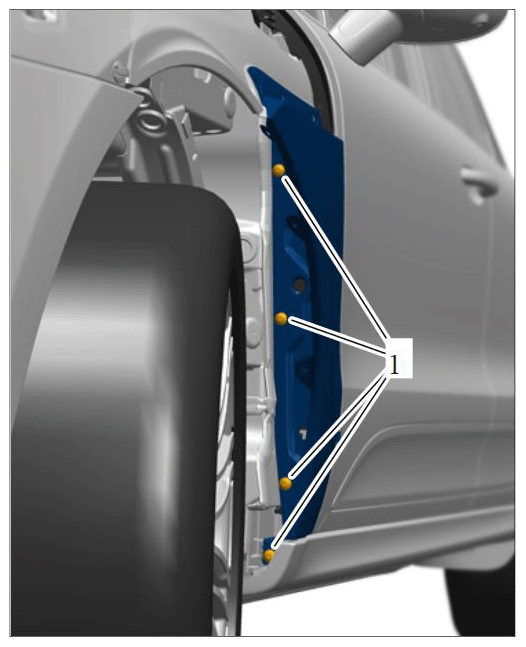

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for inner wing
