Installing Spring Strut Mount

Information:

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive  .
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed  .
• Do not begin bonding work until all materials and tools necessary for later repair work are available  .

1. Install spring strut mount and check that it fits perfectly. Check gap dimensions. Refer to WM 6X00IN GAP DIMENSIONS (EXCEPT MACAN SPORT EDITION) .
   1. 1.1. Apply adhesive to the areas marked in yellow. Refer to WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE 000.043.206.30 , WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00 . . Application depth: 3.0 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

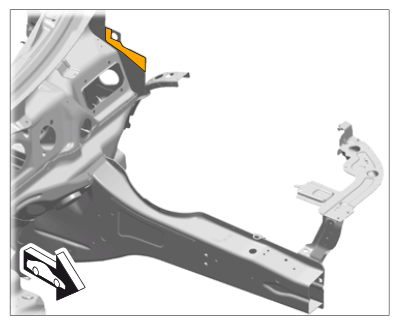

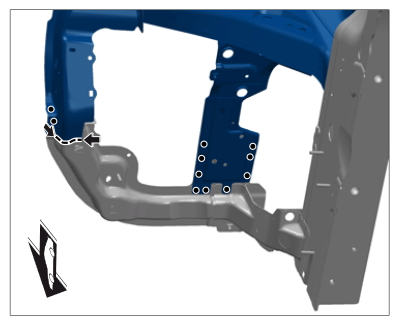

   Applying adhesive

2. Resistance spot-weld the spring strut mount.
   1. 2.1. Plug-weld area -A-  using inert gas.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

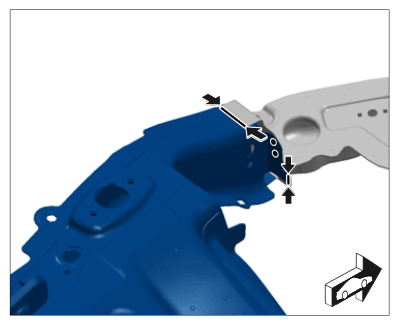

   Installing spring strut mount

3. Apply a full weld to the area -arrows-  using inert gas.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

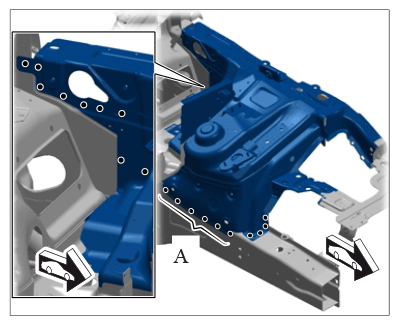

   Installing spring strut mount

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Installing spring strut mount

4. Plug-weld area -A-  using inert gas.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

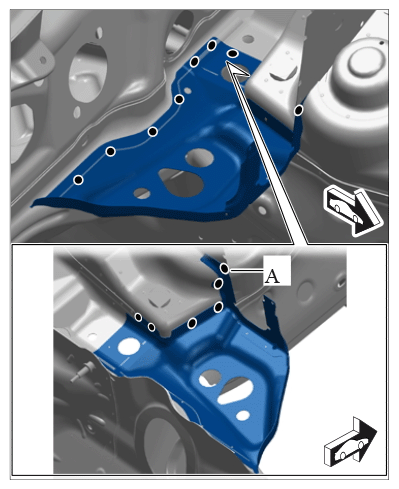

   Installing spring strut mount

5. Install lower part of plenum panel.
   1. 5.1. Plug-weld the lower part of the plenum panel using inert gas.
   2. 5.2. Resistance spot-weld area -A-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

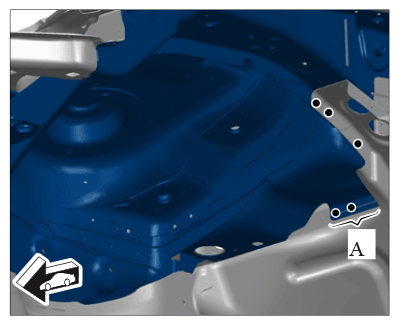

   Installing lower part of plenum panel

6. Install reinforcements.
   1. 6.1. Apply adhesive to the area marked in yellow.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

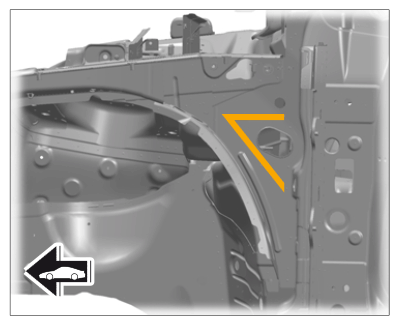

   Applying adhesive

7. Resistance spot-weld the reinforcement.
   1. 7.1. Apply a full weld to area -A & B-  using inert gas.
   2. 7.2. Spot-weld area -C-  using inert gas.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

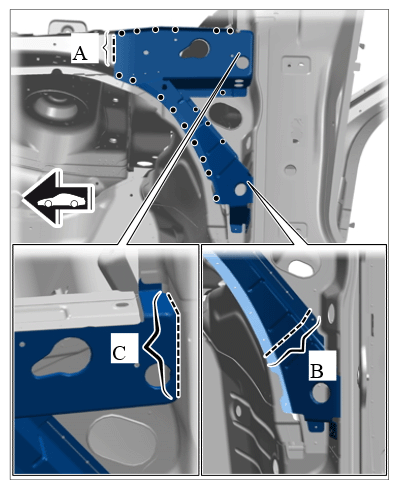

   Installing reinforcements

8. Install wing bracket.
   1. 8.1. Resistance spot-weld the wing bracket in area -A-  .
   2. 8.2. Apply a full weld to areas -arrows-  using inert gas.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

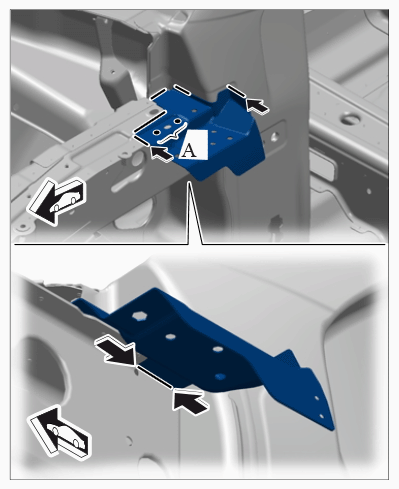

   Installing wing bracket
