Loosening Fuse Box In The Luggage Compartment
NOTE:
Voltage peaks
- Risk of damage to load or to the control unit
→ Remove the ignition key and switch off load before disconnecting or removing load.

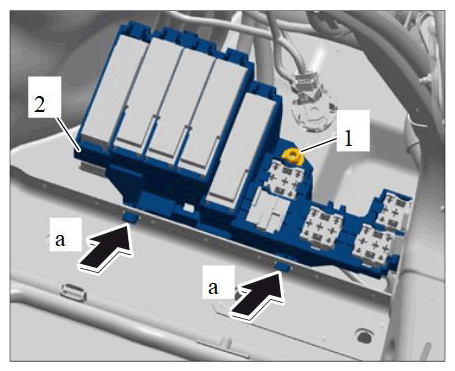

- Screw off fastening nut -1-
.
- Pull the fuse box -2-
to the right and out of the openings on the longitudinal member -a-
.
