Loosening Fuse Box In The Dashboard
NOTE:
Voltage peaks
- Risk of damage to load or to the control unit
→ Remove the ignition key and switch off load before disconnecting or removing load.

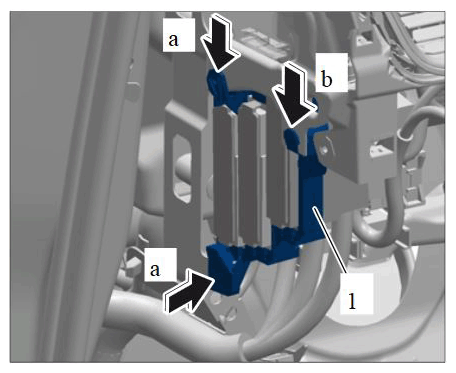

- Disengage fuse box -1-
using a screwdriver -a-
and pull it down and out of the dashboard -b-
.
