Loosening Fuse Box In The Cowl Panel

NOTE: Voltage peaks
  • Risk of damage to load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

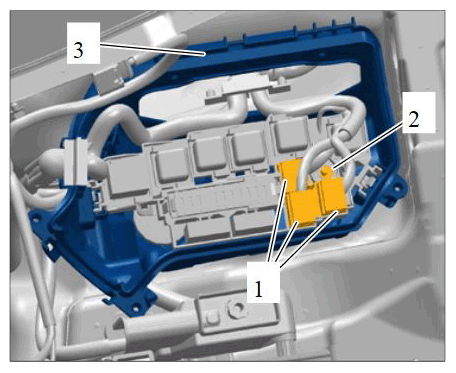

  1. Release and disconnect electric plug connections -1-  .
  2. Screw off fastening nut -2-  and remove positive cable from the fuse box -3-.
    G11984971

    Disconnecting electric plug connections and positive cable

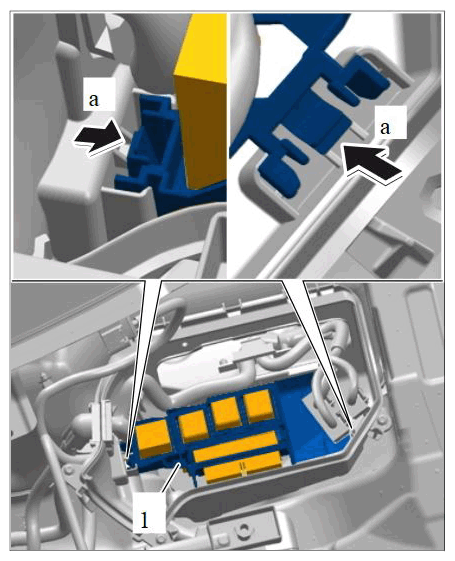

  3. Release fuse box -1-  at the left and right -a-  and remove it.
    G11984972
