Disconnecting optical waveguide (PCM to loudspeaker booster)
NOTE:
Observe the general information on optical waveguides. → General information on optical waveguides - MOST bus
NOTE:
Before routing a new optical waveguide:
- Visually check the locks, connector housing and contacts for damage .
- Replace damaged parts if necessary .

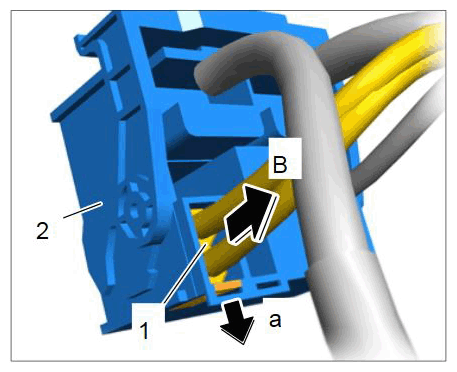

- Release electric plug connection -1-
for optical waveguide at the compact connector -2-
for the PCM display and operator control unit -B-
and disconnect it.
Disconnecting electric plug connection from compact connector for PCM
Removing optical contacts on connector side

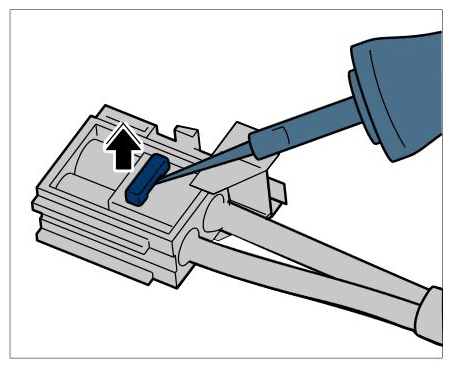

- Open the secondary locking mechanism using press-out and unlocking tools for tab and round plug connectors of all sizes Nr.155
. Insert the tool into the opening provided and lift the locking mechanism. The locking mechanism engages in the upper position.
Unlocking secondary locking mechanism of the optical contacts (connector side)

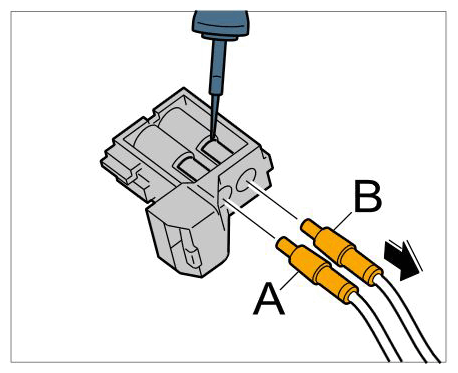

- Press-out and unlocking tools for tab and round plug connectors of all sizes Nr.155
must be positioned on the primary locking mechanism. Then lift the locking mechanism.
- Optical contact, grey
- Optical contact, black
- Carefully pull on the optical waveguides -A and B- in -direction of arrow- . If it is not possible to pull out the optical waveguide, check again that the secondary locking mechanism is completely released and that the primary locking mechanism is raised sufficiently.
Perform visual inspection of locking mechanisms, connector housings and contacts for possible damage, and exchange the damaged parts, if necessary.
