WM 970919 Removing And Installing Main Wire Harness (Except MACAN Sport Edition): Information

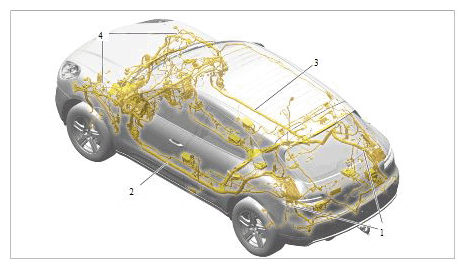

Fig 1: Overview Of Main Wire Harness Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Main wire harness in luggage compartment
2. Main wire harness in passenger compartment at the left
3. Main wire harness in passenger compartment at the right
4. Main wire harness in engine compartment
