Removing Loudspeaker Booster

CAUTION: Voltage peaks
  • Risk of damage to load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

NOTE:

Always comply with the regulations for handling ESD-sensitive components!

  • Always wear approved work clothes and shoes when carrying out assembly work.
  • Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation.
  • Do not touch electric pins and plug contacts.
  1. Switch off ignition and pull remote control out of ignition lock.
  2. Unscrew fastening screws -1-  and remove loudspeaker booster -2-  from the holder.

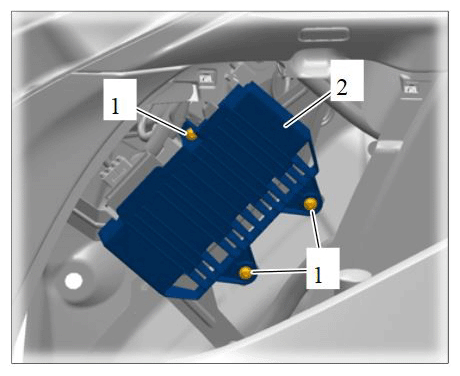

    G11982498

    Removing loudspeaker booster

  3. Release electric plug connection -1-  (-a-  ) and pull it off the loudspeaker booster.
    NOTE: Incorrect handling of optical waveguides
    • Risk of damage to optical waveguide

    → Observe the requirements for working with and installing optical waveguides.

  4. Release electric plug connection -2-  (-b-  ), pull it off the loudspeaker booster and remove loudspeaker booster.

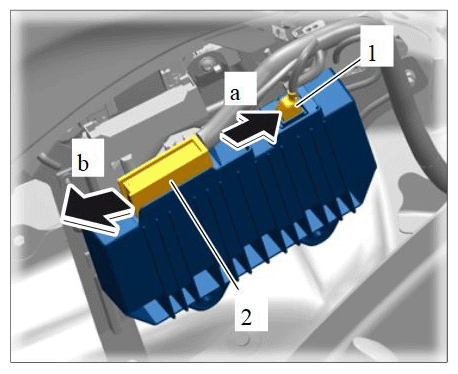

    G11982499

    Disconnecting electric plug connections
