Removing TV Tuner
CAUTION:
Incorrect handling of optical waveguides
- Risk of damage to optical waveguide
→ Observe the requirements for working with and installing optical waveguides.
CAUTION:
Voltage peaks
- Risk of damage to load or to the control unit
→ Remove the ignition key and switch off load before disconnecting or removing load.
NOTE:
Always comply with the regulations for handling ESD-sensitive components!
- Always wear approved work clothes and shoes when carrying out assembly work.
- Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation.
- Do not touch electric pins and plug contacts.
- Switch off ignition and pull remote control out of ignition lock.

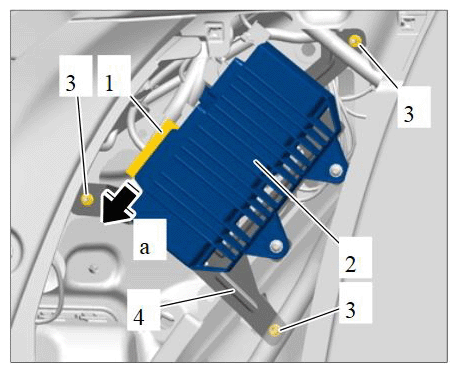

- Release electric plug connection -1- (-a- ) and disconnect it from the loudspeaker booster -2- .
- Unscrew fastening nuts -3-
and remove holder -4-
from the body.

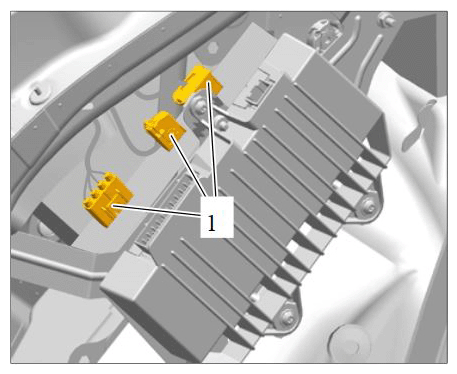

- Release and disconnect electric plug connections -1-
.
Disconnecting electric plug connections

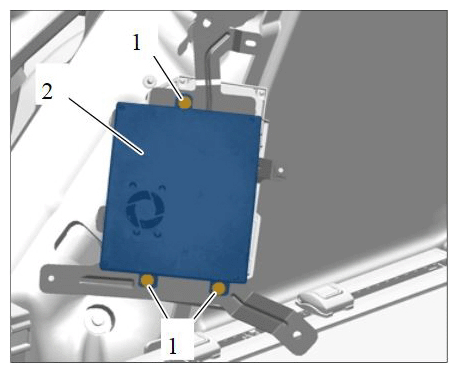

- Unscrew fastening screws -1-
and remove TV tuner -2-
from the holder.
Removing TV tuner
