Removing PCM Display And Operator Control Unit
CAUTION:
Incorrect handling of optical waveguides
- Risk of damage to optical waveguide
→ Observe the requirements for working with and installing optical waveguides.
NOTE:
Always comply with the regulations for handling ESD-sensitive components!
- Always wear approved work clothes and shoes when carrying out assembly work.
- Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation.
- Do not touch electric pins and plug contacts.
NOTE:
Protect centre console against scratching by using a suitable cover.
- Move PDK selector lever to position D.
- Switch off the ignition.
- Cover the switch console and PDK selector lever with clean, soft cloths.

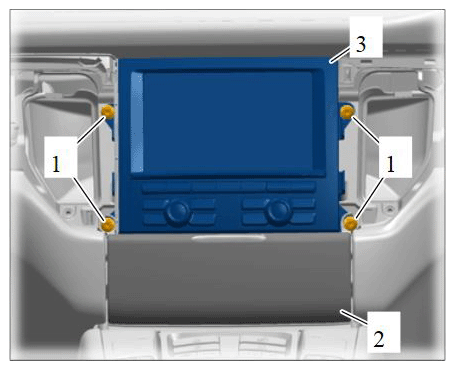

- Unscrew fastening screws -1-
and remove flap -2-
on the central computer.
Removing display and operator control unit

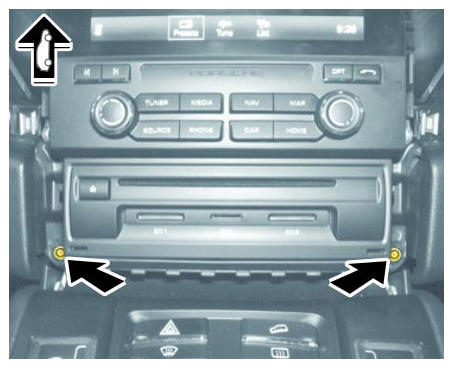

- Unscrew the screws under the flap.

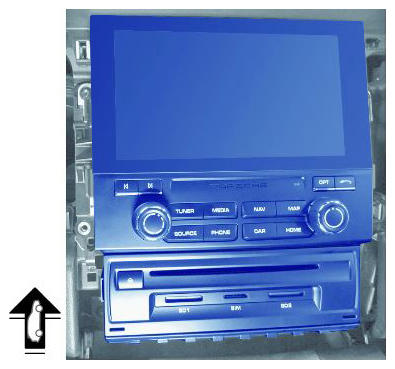

- Carefully pull display and operator control unit together with the central computer out of the instrument panel and set them down on the padded switch console.
Pulling out display and operator control unit together with central computer

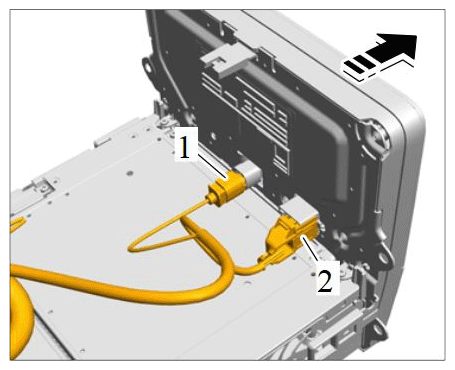

- Release and disconnect antenna connector -1-
and electric push-on connector -2-
on the display and operator control unit.
Electric push-on connector for display unit
- Tilt display and operator control unit forward slightly, carefully unclip it from the locking lugs on the base carrier and guide it up and out.
