Removing KESSY Antenna In Luggage Compartment

  1. Disengage retaining lugs -a-  and remove KESSY antenna in luggage compartment -1-  from its holder.
  2. Release and disconnect electric plug connection -2-  (-b-  ).

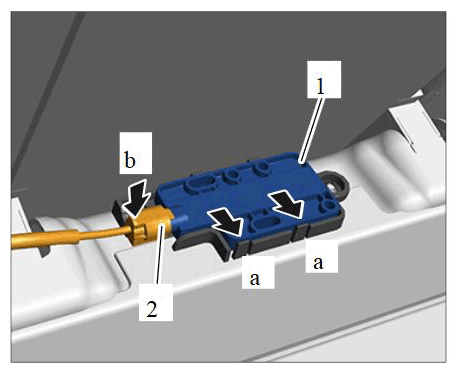

    G11984743

    Removing KESSY antenna in luggage compartment
