Removing Control Unit For Rear-Differential Lock

NOTE:

Always comply with the regulations for handling ESD-sensitive components!

  • Always wear approved work clothes and shoes when carrying out assembly work.
  • Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation.
  • Do not touch electric pins and plug contacts.

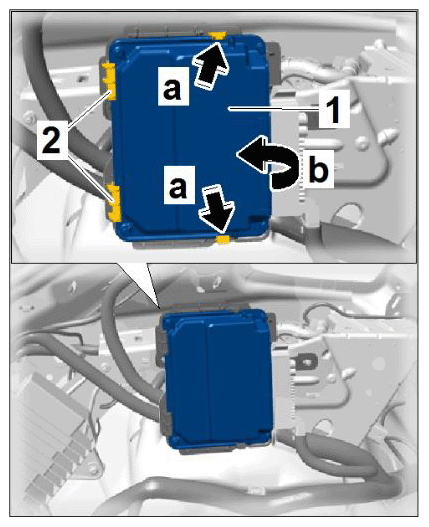

  1. Remove control unit for rear-differential lock -1-  .
    1. 1.1. Disengage locking mechanisms -a-  and swivel control unit for rear-differential lock out of the holder -b-  .
    2. 1.2. Pull control unit for rear-differential lock forward out of the clips -2-  .
    G11983707

    Removing control unit for rear-differential lock

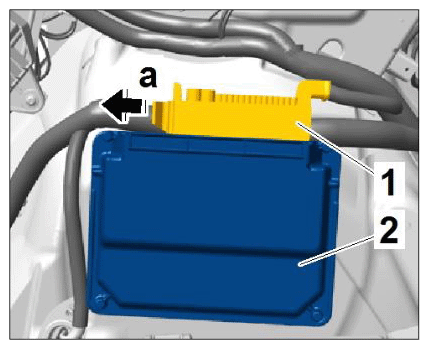

  2. Release electric plug connection -1-  (-a-  ) and disconnect it from the rear-differential lock control unit -2-  .
    G11983708

    Disconnecting electric plug connection
