Removing Left Side Cover For Centre Underbody
WARNING: This page is about a different car, the 2017 Porsche Macan, 2016 Porsche Macan, and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Irritant substances and materials
→ Wear personal protective gear.

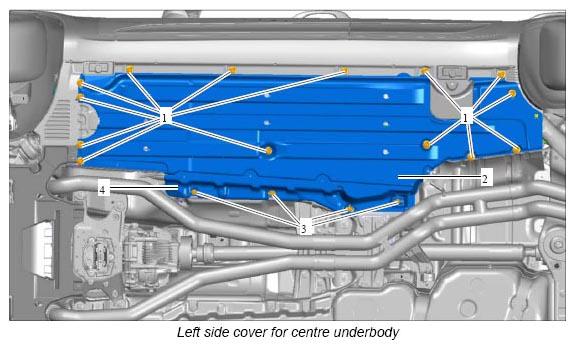

- Unscrew fastening nuts -3-
and remove heat shield -4-
(only fitted on vehicles with petrol engine).
- Unscrew fastening screws -1-
and remove side cover -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
