Removing Side Cover For Front Underbody

WARNING: This page is about a different car, the 2017 Porsche Macan, 2016 Porsche Macan, and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press release and disconnect hose for headlight ventilation -3-  .
  2. Unscrew fastening screws -2-  and remove side cover at the front -1-  .

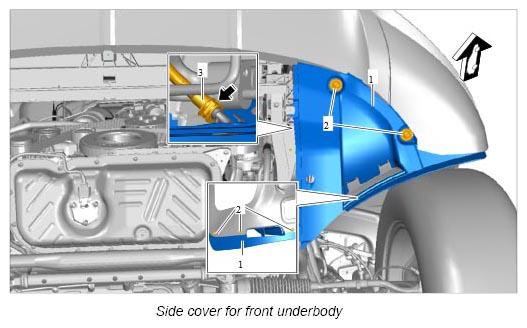

    G12889801Courtesy of PORSCHE CARS NORTH AMERICA, INC.
