Removing Central Cover For Front Underbody
WARNING: This page is about a different car, the 2017 Porsche Macan, 2016 Porsche Macan, and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Irritant substances and materials
- Itching
- Skin irritation
→ Wear personal protective gear.
Information
- The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment .
- The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant .
- Some steps must be carried out automatically .
- Some of the repair illustrations show only one side of the vehicle .

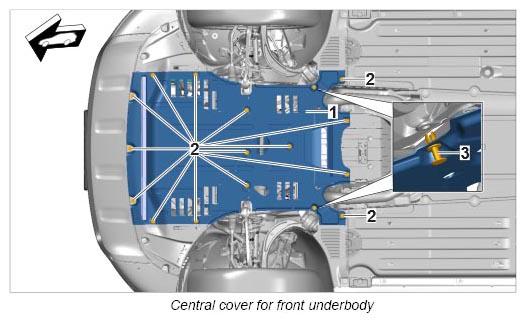

- Release expansion rivets -3- and remove them.
- Unscrew fastening screws -2- and remove central cover at the front -1- .
