Removing Centre Side Member

WARNING: This page is about a different car, the 2017 Porsche Macan, 2016 Porsche Macan, and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

Information

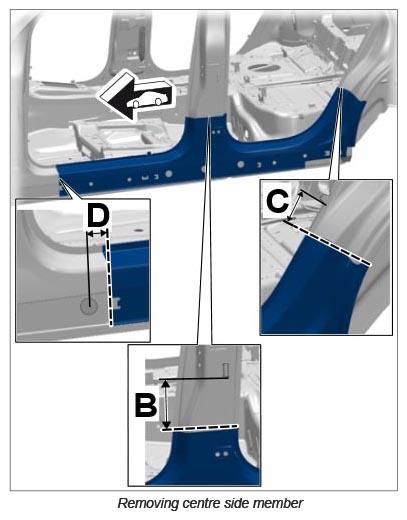

Mark cuts B, C and D in accordance with the new part. Make sure to leave an overlap of approx. 3 cm with respect to the body.

Fig 1: Centre Side Member Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

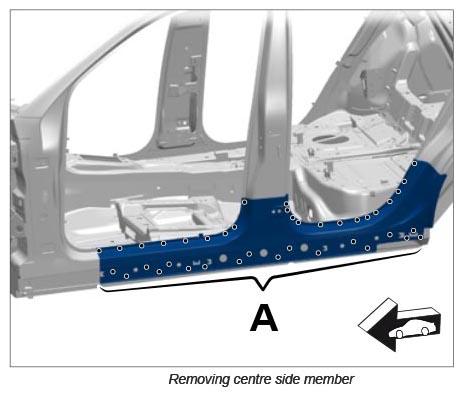

Drill out spotwelds using spotweld drill;

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

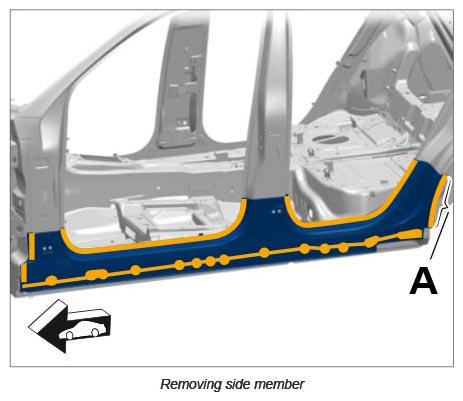

Heat bonding areas.

2.1. Bend up edge of wheel arch -A- .

2.2. Remove centre side member.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
