Preparing Centre Side Member For Installation

WARNING: This page is about a different car, the 2017 Porsche Macan, 2016 Porsche Macan, and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Adhesive must not be applied to areas to be plug-welded or fully welded using inert gas.

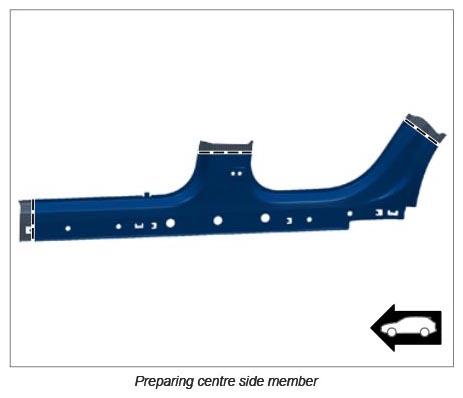

  1. Fit in centre side member.
    1. 1.1. Cut centre side member at the transitions to the body leaving an overlap of 30 mm.
      G12889755Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Fit in centre side member again.
    1. 2.1. Make cuts through the centre side member and body in the overlap areas.

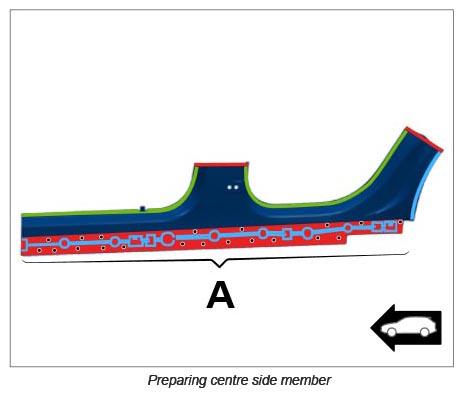

  3. Prepare centre side member for bonding and welding.
    G12889756Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    Green Resistance spot-welding + bonding
    Blue Bonding
    Red Resistance spot-welding/apply a full weld using inert gas without bonding
