Installing Centre Side Member

WARNING: This page is about a different car, the 2017 Porsche Macan, 2016 Porsche Macan, and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive .
The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed .
Do not begin bonding work until all materials and tools necessary for later repair work are available .

Install centre side member and check that it fits perfectly. Check gap dimensions. → WM 5X00IN GAP DIMENSIONS

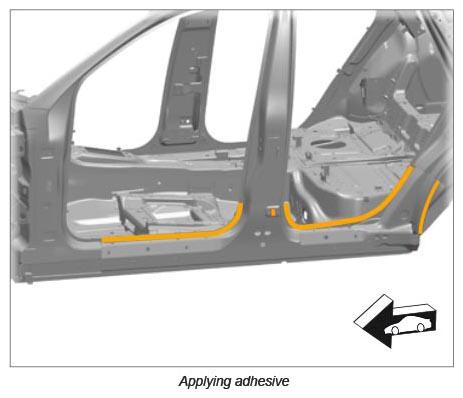

1.1. Apply adhesive to the areas marked in yellow. → 5X00IN21 WORKING WITH STRUCTURAL BODY ADHESIVE → Application depth: 3.0 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

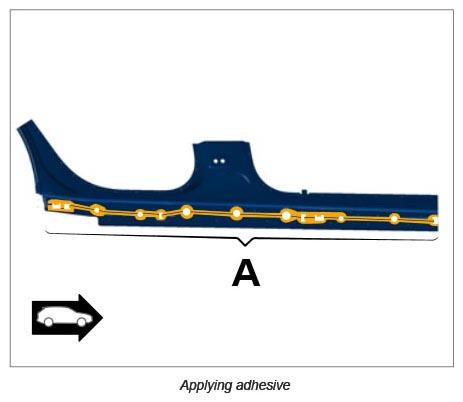

Apply adhesive to area -A- . Make sure that no adhesive gets onto the connection areas for resistance spot-welding.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Resistance spot-weld the centre side member.

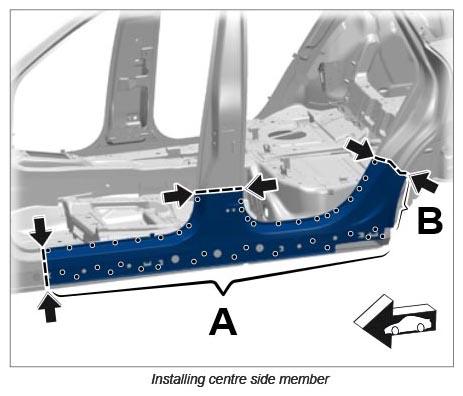

3.1. Resistance spot-weld area -A- .
3.2. Apply a full weld to the centre side member using inert gas.

3.3. Flange area -B- on the edge of the wheel arch.
