Removing Inner Side Member

WARNING: This page is about a different car, the 2017 Porsche Macan, 2016 Porsche Macan, and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

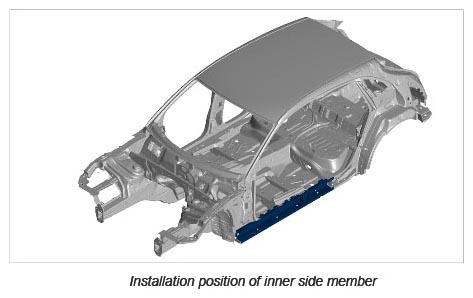

Fig 1: Inner Side Member Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Loosen connection points on one side only. Do not damage the sheet-metal panel underneath.

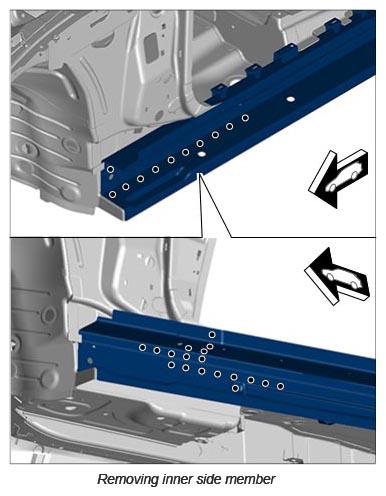

Drill out spotwelds using spotweld drill; .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

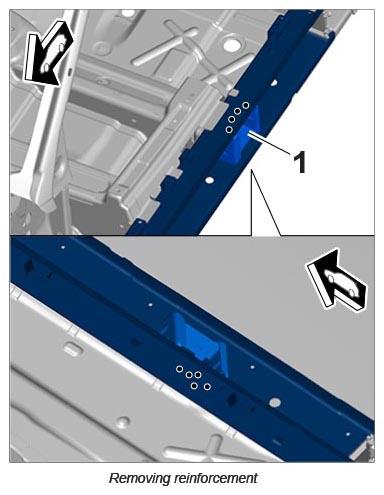

Drill out spotwelds on reinforcement -1- using spotweld drill; .

2.1. Remove reinforcement.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

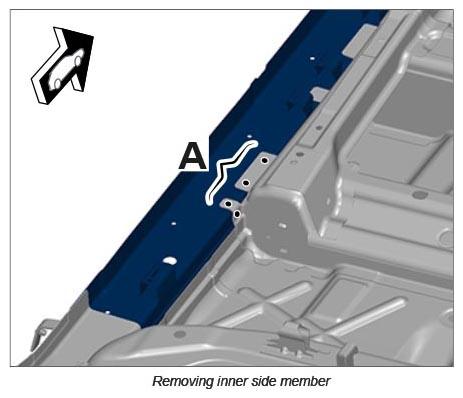

Drill through spotwelds in area -A- using spotweld drill; .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Loosen connection points on one side only. Do not damage the sheet-metal panel underneath.

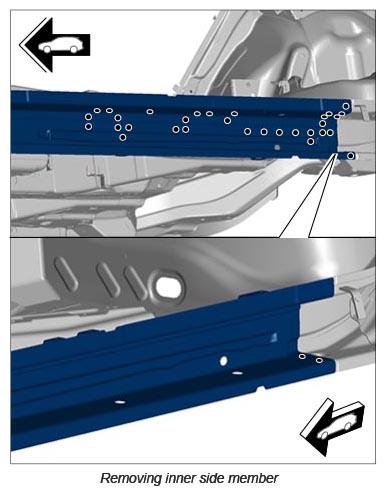

Drill out spotwelds using spotweld drill; .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

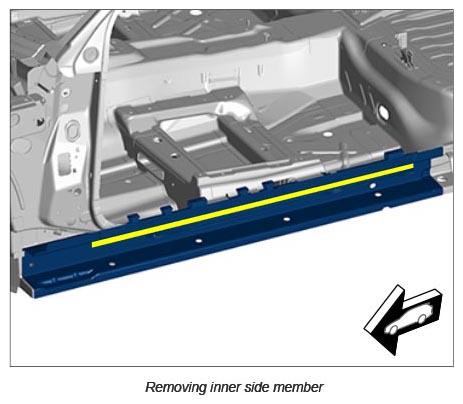

Heat the marked bonding areas.

5.1. Remove inner side member.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
