Preparing Outer Side Member For Installation
WARNING: This page is about a different car, the 2017 Porsche Macan, 2016 Porsche Macan, and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Information
Adhesive must not be applied to areas to be plug-welded or fully welded using inert gas.

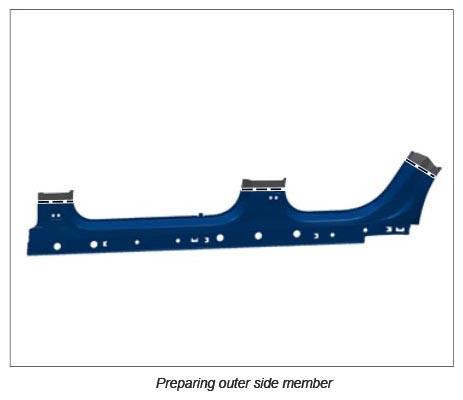

- Fit in outer side member.
- 1.1. Cut outer side member at the transitions to the body leaving an overlap of 30 mm.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

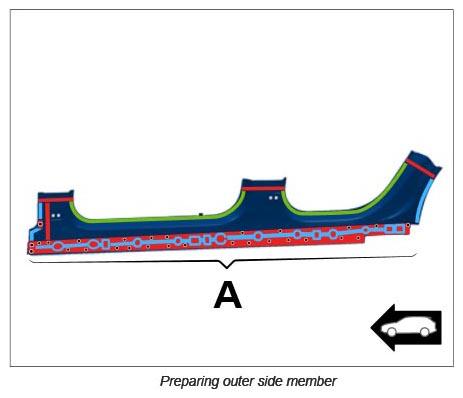

- Prepare outer side member for bonding and welding.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| Green |
Resistance spot-welding + bonding |
| Blue |
Bonding |
| Red |
Resistance spot-welding/apply a full weld using inert gas without bonding |
