Cut Variants
WARNING: This page is about a different car, the 2017 Porsche Macan, 2016 Porsche Macan, and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Information
Cuts can be made in the defined areas on the outer B-pillar due to the parts dimensions. The purpose of the different cuts is to keep the repair area as small as possible in the event of damage.

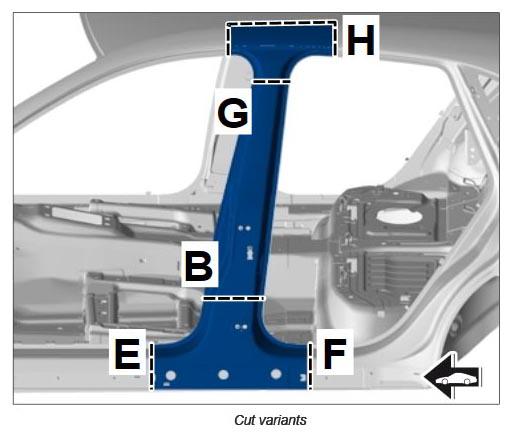

The diagram should help you to determine the correct position of cuts.
E-F-H - Replace cuts for the B-pillar reinforcement. → 514255 REPLACING B-PILLAR REINFORCEMENT
E-F-G - Replace cuts for the B-pillar. → 514155 REPLACING B-PILLAR
