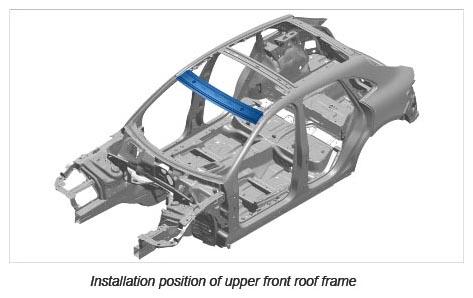

Removing Upper Front Roof Frame
WARNING: This page is about a different car, the 2017 Porsche Macan, 2016 Porsche Macan, and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Information
Loosen connection points on one side only. Do not damage the sheet-metal panel underneath.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

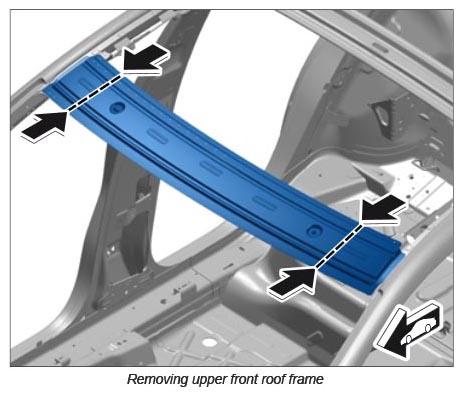

- Roughly cut out upper and lower part of roof frame.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

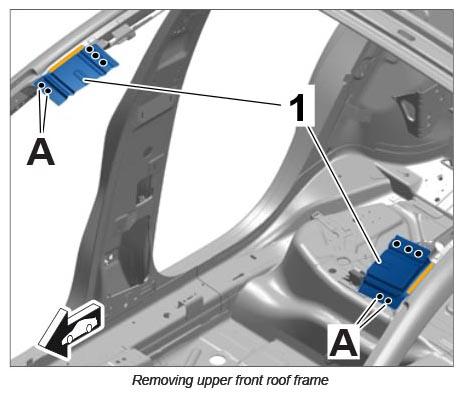

- Drill through spotwelds using a spotweld drill;
.
Information
Drill out spotwelds A
through two plate thicknesses.
- 2.1. Drill through spotwelds in area -A-
using a spotweld drill;
.
- 2.2. Heat bonding areas.
- 2.3. Remove remaining pieces -1-
of top half of roof frame.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

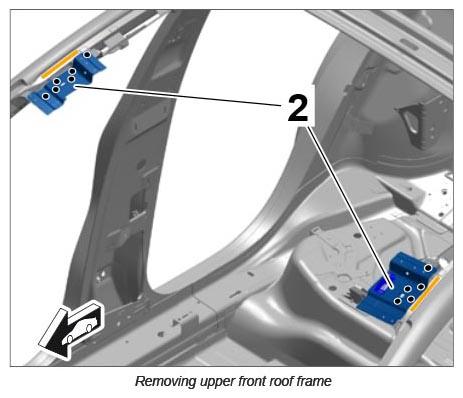

- Drill through spotwelds using a spotweld drill;
- 3.1. Remove remaining pieces of bottom half of roof frame -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
