Preparing Connection Areas Of Upper Front Roof Frame

WARNING: This page is about a different car, the 2017 Porsche Macan, 2016 Porsche Macan, and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

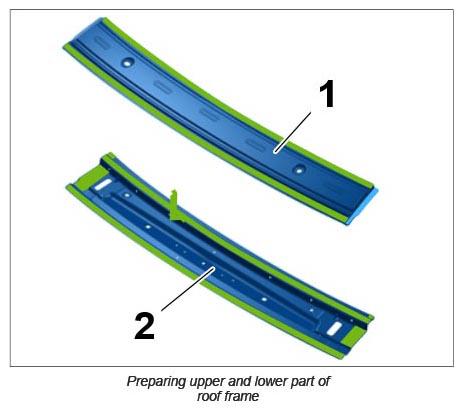

  1. Fit in lower part -2-  and upper part of upper front roof frame -1-  .
  2. Prepare connection areas for bonding and welding.
    G12889464Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    Green Resistance spot-welding
    Blue Bonding
