Preparing Roof Pillar For Installation
WARNING: This page is about a different car, the 2017 Porsche Macan, 2016 Porsche Macan, and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
- FIT IN THE ROOF PILLAR.

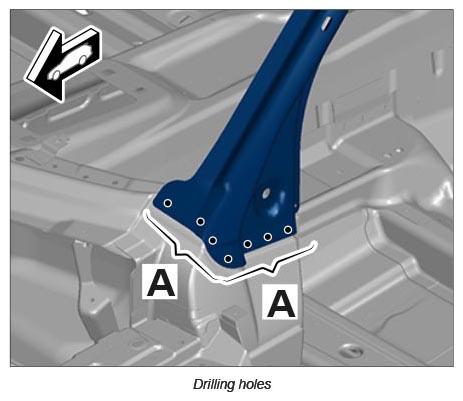

- COMPLETELY DRILL HOLES FOR BLIND RIVET JOINTS IN THE MARKED AREAS -A-. → DIAMETER: 6.5 MM
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

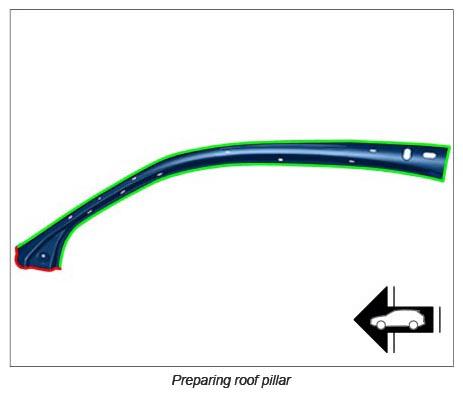

- PREPARE THE MARKED CONNECTION AREAS FOR BONDING AND WELDING.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| GREEN |
RESISTANCE SPOT-WELDING + BONDING |
| RED |
BONDING + BLIND RIVETS |
