Preparing Connection Areas Of The Body
WARNING: This page is about a different car, the 2017 Porsche Macan, 2016 Porsche Macan, and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
- Align the sealing surface and connections of the body.
Information
- Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive .
- The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed .
- Do not begin bonding work until all materials and tools necessary for later repair work are available .
- De-burr connection points and prepare them for bonding. → 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE

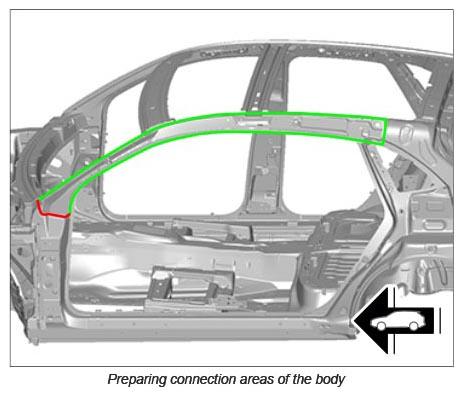

- Prepare the marked areas for bonding and welding.
Green Resistance spot-welding + bonding Red Bonding + blind rivets
