Preparing Connection Areas Of Body For Installing Roof

WARNING: This page is about a different car, the 2017 Porsche Macan, 2016 Porsche Macan, and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Do not apply zinc powder paint to the bonding areas.

Clean welding and bonding areas.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

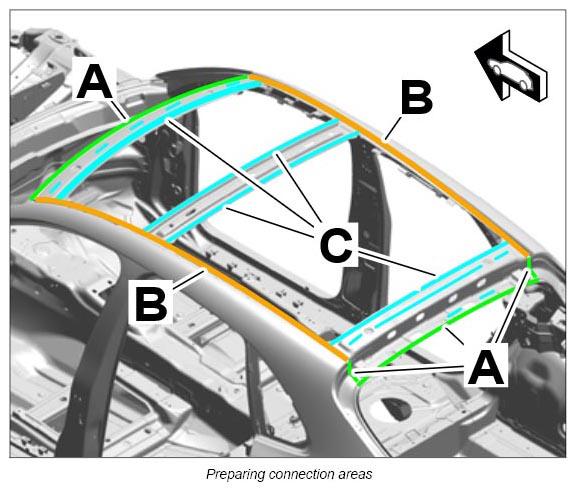

1. 1.1. Prepare connection flanges in areas -A- for resistance spot-welding and bonding.
2. 1.2. Prepare connection flanges in areas -B- for bonding.
3. 1.3. Prepare bonding areas of support adhesive -C- for bonding with window adhesive.
