Installing Roof

WARNING: This page is about a different car, the 2017 Porsche Macan, 2016 Porsche Macan, and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

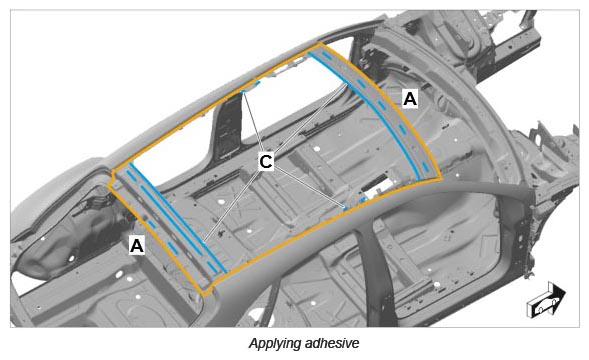

Apply structural adhesive and support adhesive (window adhesive).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Evenly apply structural adhesive to the marked areas -A- .
  Working with body structural adhesive → 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE

  Structural adhesive;
2. 1.2. Apply support adhesive (window adhesive) to the marked areas -C- .
  Support adhesive;

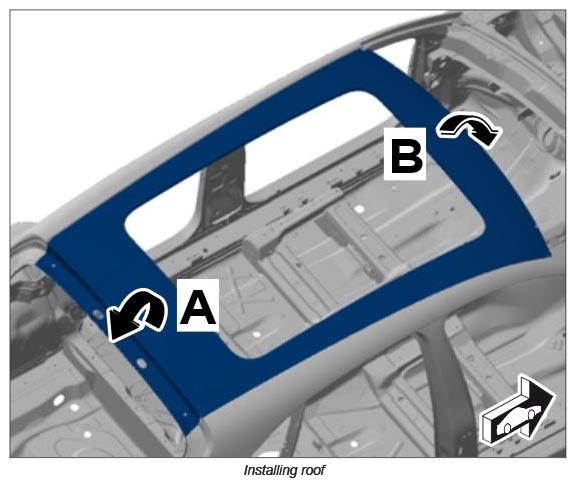

Place roof on rear roof frame with the help of two people -arrow A- and swivel it in towards the front -arrow B- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Have this work carried out by an assistant whilst at the same time starting with the welding work .

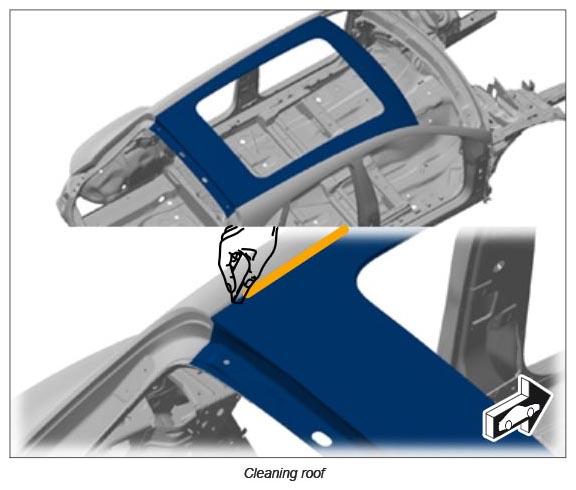

Clean surface of roof in the side panel area.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

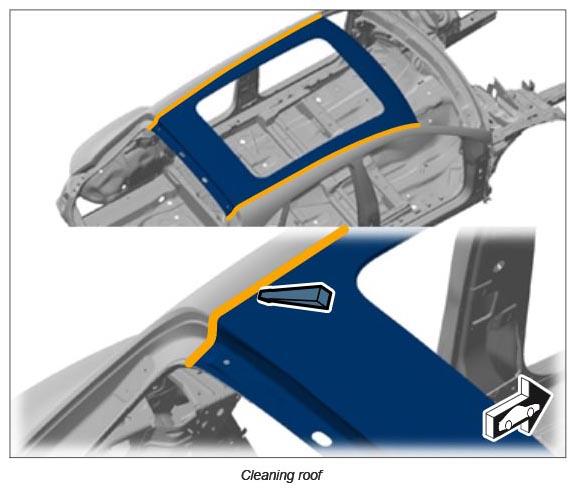

3.1. Remove most of the excess adhesive material with a plastic spatula or cloth.

3.2. Finish cleaning visible surfaces with a cloth soaked in cleaning solution.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

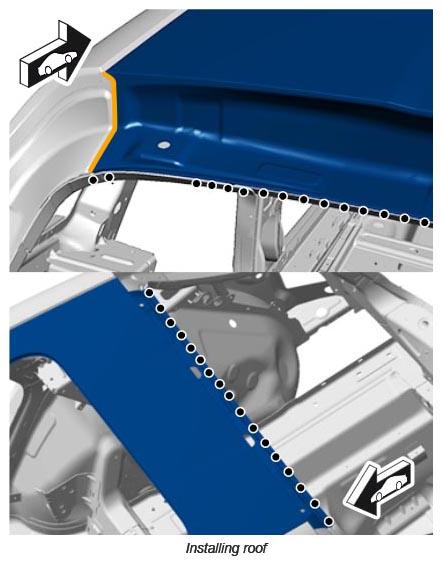

Resistance spot-weld the front of the roof.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

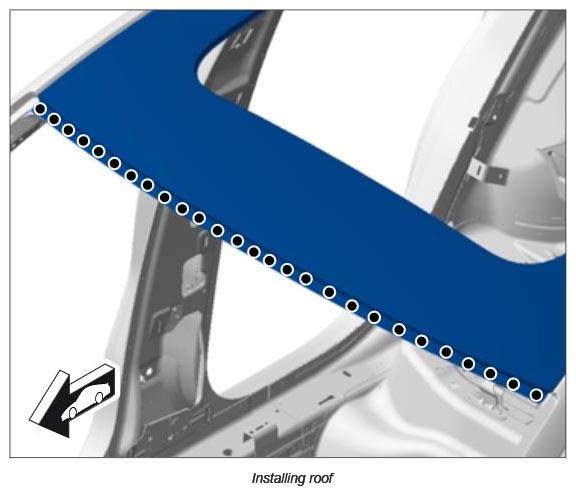

Resistance spot-weld the rear of the roof.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
