Fuel Tank: Removal

WARNING: This page is about a different car, the 2018 Land Rover Discovery and 2017 Land Rover Discovery. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

After carrying out repairs, the fuel system must be checked visually for leaks. Failure to follow these instructions may result in personal injury.
This procedure involves fuel handling. Be prepared for fuel spillage at all times and always observe fuel handling precautions. Failure to follow these instructions may result in personal injury.
The spilling of fuel is unavoidable during this operation. Ensure that all necessary precautions are taken to prevent fire and explosion.
If fuel contacts the eyes, flush the eyes with cold water or eyewash solution and seek medical attention.

NOTE:

Some components shown removed for clarity.
Removal steps in this procedure may contain installation details.
Some variation in the illustrations may occur, but the essential information is always correct.

All vehicles

WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: DIESEL FUEL SYSTEM HEALTH AND SAFETY PRECAUTIONS .
Disconnect the battery ground cable.
Refer to: SPECIFICATIONS .
Drain the fuel tank.
Refer to: FUEL TANK DRAINING .
Repeat procedure for the other side.

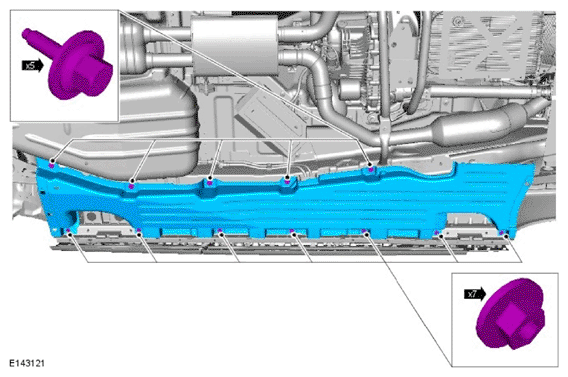

Refer to: REAR ROCKER PANEL MOULDING .
Refer to: REAR DRIVESHAFT - TDV6 3.0L DIESEL .
NOTE:
- Repeat the procedure for the other side.
- Left illustration shown, right is similar.

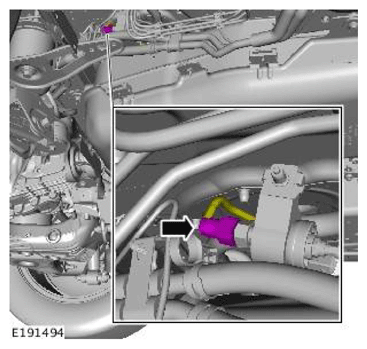

Vehicles with fuel fired heater
WARNING: Be prepared to collect escaping fuel.

Vehicles with Diesel Exhaust Fluid (DEF)
Refer to: ENGINE EMISSION CONTROL - TDV6 3.0L DIESEL -- DISCOVERY SPORT/L462 .

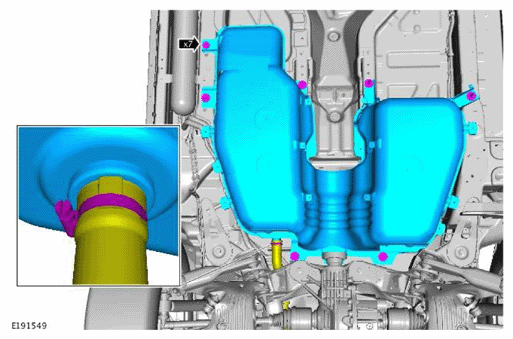

All vehicles

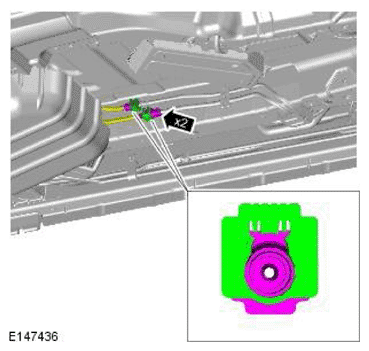

WARNING: Be prepared to collect escaping fuel.

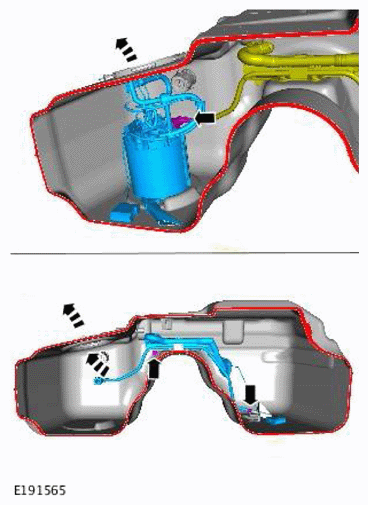

NOTE:
- Do not disassemble further if the component is removed for access only.
- This step requires the aid of another technician.
Torque: 45 Nm

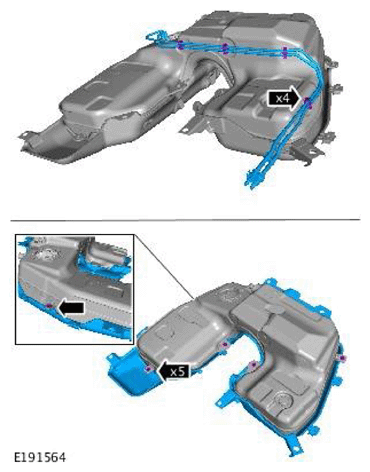

NOTE: Do not disassemble further if the component is removed for access only.

Torque: 10 Nm
