Fuel Cooler: Installation

WARNING: This page is about a different car, the 2018 Land Rover Discovery and 2017 Land Rover Discovery. However, it is still accessible from the selected car via links, so may be relevant.

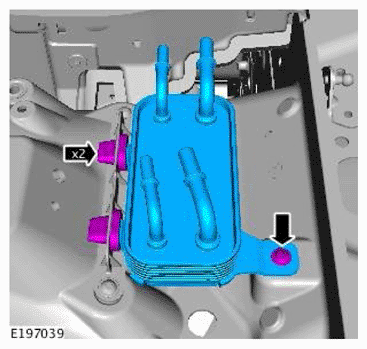

  1. G11708752

    Torque:  10 Nm

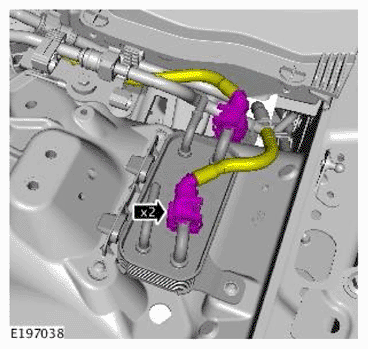

  2. G11708751

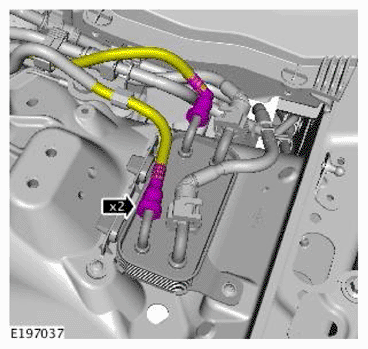

  3. G11708750

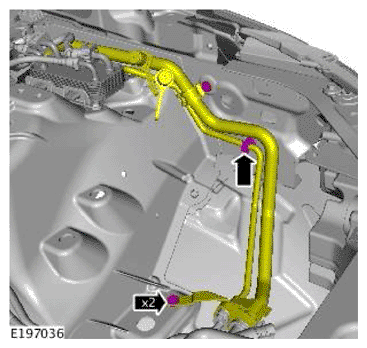

  4. G11708749

    Torque:  10 Nm

  5. Install the air cleaner.

    Refer to: LEFT AIR CLEANER .

  6. Connect the battery ground cable.

    Refer to: SPECIFICATIONS .

  7. Bleed the fuel system.

    Refer to: LOW-PRESSURE FUEL SYSTEM BLEEDING .

  8. Check and top up engine coolant.
  9. Run the engine and check for any fuel or coolant leaks.
