Fuel Cooler
WARNING: This page is about a different car, the 2018 Land Rover Discovery and 2017 Land Rover Discovery. However, it is still accessible from the selected car via links, so may be relevant.

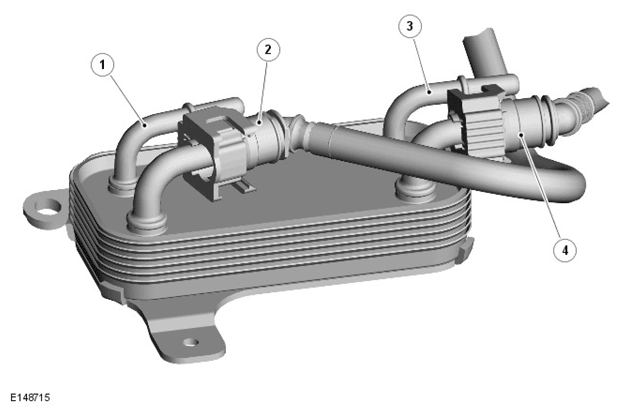

| ITEM | DESCRIPTION |
|---|---|
| 1 | Engine coolant inlet connection |
| 2 | Fuel inlet connection |
| 3 | Engine coolant outlet connection |
| 4 | Fuel outlet connection |
The Low Pressure (LP) fuel cooler is located on left side of the engine, and is mounted on a bracket.
The engine coolant inlet and outlet pipes are connected to the corresponding pipes of the charge air cooler circuit. The charge air coolant pump circulates the coolant in this circuit.
For additional information, refer to: ENGINE COOLING - TDV6 3.0L DIESEL -- DISCOVERY/L462 .
