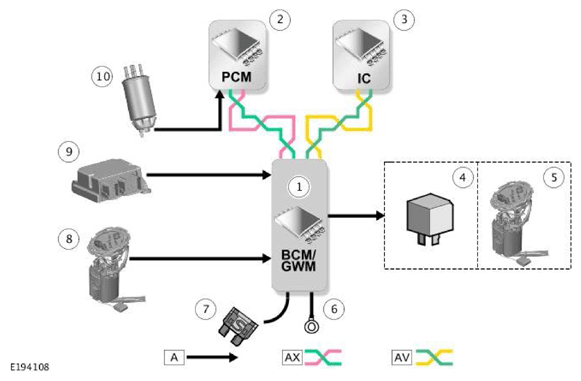

Control Diagram
WARNING: This page is about a different car, the 2018 Land Rover Discovery and 2017 Land Rover Discovery. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED: AV = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) COMFORT SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 2 | Powertrain Control Module (PCM) |
| 3 | Instrument Cluster (IC) |
| 4 | Fuel pump relay - Rear Junction Box (RJB) |
| 5 | Fuel pump module |
| 6 | Ground |
| 7 | Power supply |
| 8 | Fuel level sensor |
| 9 | Restraints Control Module (RCM) crash signal |
| 10 | Water In Fuel (WIF) sensor |
