Parking Brake Module: Removal

WARNING: This page is about a different car, the 2018 Land Rover Discovery and 2017 Land Rover Discovery. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Disconnect the battery ground cable.

    Refer to: SPECIFICATIONS .

  2. Refer to: RIGHT LOADSPACE TRIM PANEL .

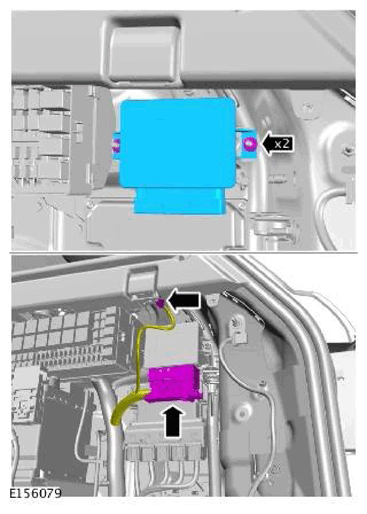

  3. G11996066

    Torque:  5 Nm
