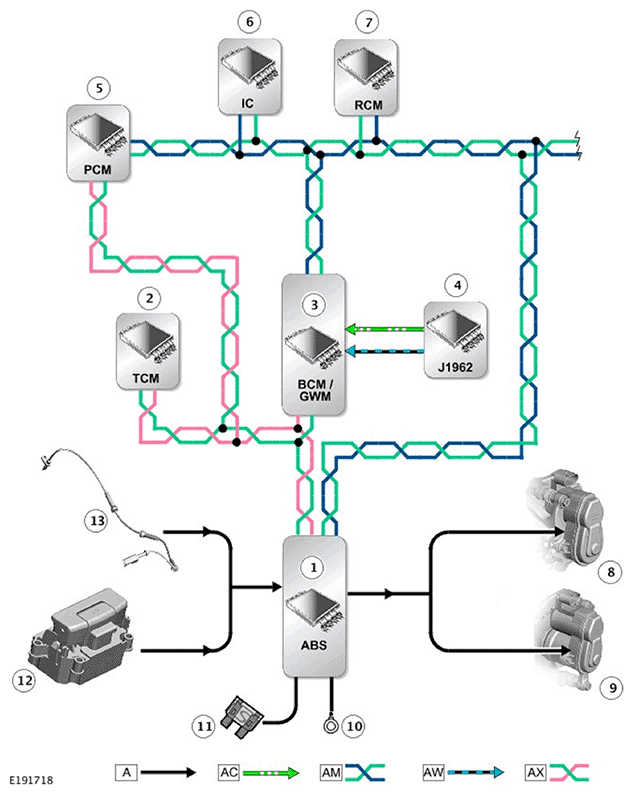

Control Diagram
WARNING: This page is about a different car, the 2018 Land Rover Discovery and 2017 Land Rover Discovery. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED; AC = DIAGNOSTIC; AX = FLEXRAY BUS; AM = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) CHASSIS SYSTEMS BUS; AW = ETHERNET.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Anti-lock Brake System (ABS) control module |
| 2 | Transmission Control Module (TCM) |
| 3 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 4 | Diagnostic connector |
| 5 | Powertrain Control Module (PCM) |
| 6 | Instrument Cluster (IC) |
| 7 | Restraints Control Module (RCM) |
| 8 | Electric Park Brake (EPB) actuator - Left |
| 9 | Electric Park Brake (EPB) actuator - Right |
| 10 | Ground |
| 11 | Power supply |
| 12 | Electric Park Brake (EPB) switch |
| 13 | Wheel speed sensors - 4 off |
