Removal And Installation: Removal
WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery ground cable.
Refer to: SPECIFICATIONS
- Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
- Refer to: SECONDARY BULKHEAD CENTER PANEL - TDV6 3.0L DIESEL
- Refer to: ACCESSORY DRIVE BELT IDLER PULLEY
Torque Specification: 3 Nm
Torque Specification: 8 Nm
Torque Specification: 8 Nm
Torque Specification: 8 Nm
Torque Specification: 8 Nm
Torque Specification: 8 Nm

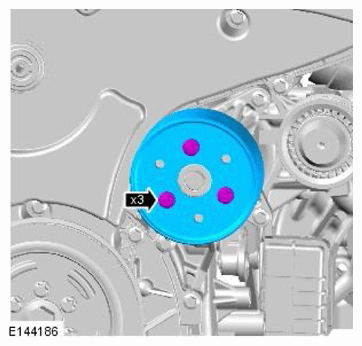

CAUTION: Discard the bolts.- Using a suitable 6mm bar, retain the coolant pump pulley.
- Renew Part: Engine coolant pump pulley bolts Quantity: 1
.
Torque Specification: 25 Nm
Torque Specification: 25 Nm
Torque Specification: 10 Nm
