Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable.

    Refer to: SPECIFICATIONS

  2. Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
  3. Refer to: SECONDARY BULKHEAD CENTER PANEL - TDV6 3.0L DIESEL
  4. Refer to: ACCESSORY DRIVE BELT IDLER PULLEY

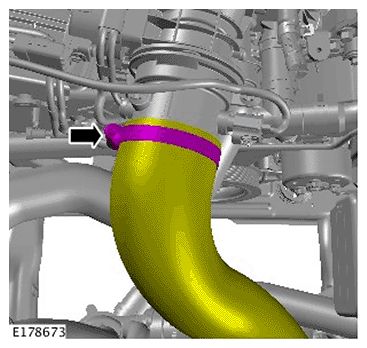

  5. G11695849

    Torque Specification: 3 Nm

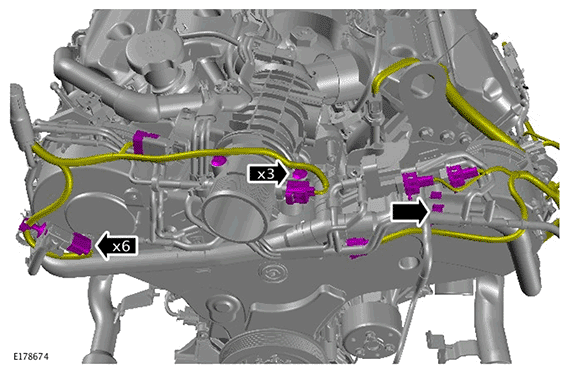

  6. G11695850

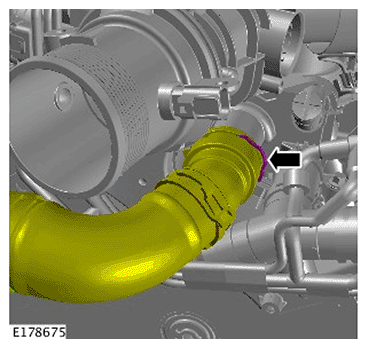

  7. G11695851

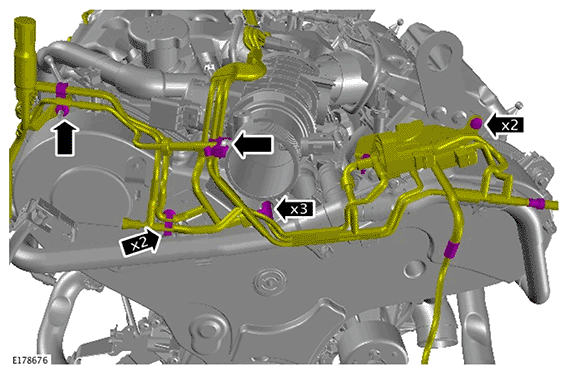

  8. G11695852

    Torque Specification: 8 Nm

  9. G11695853

    Torque Specification: 4 Nm

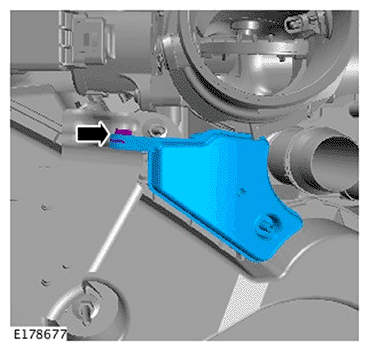

  10. G11695854

    Torque Specification: 8 Nm

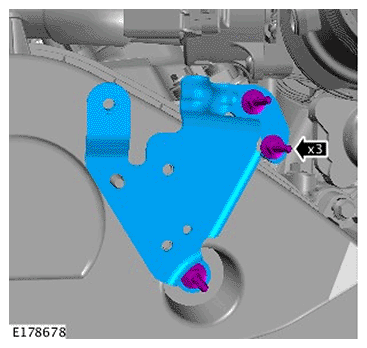

  11. G11695855

    Torque Specification: 8 Nm

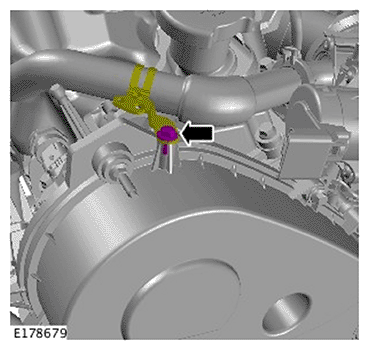

  12. G11695856

    Torque Specification: 4 Nm

    CAUTION: Discard the bolts.
  13. G11695857
    • Using a suitable 6mm bar, retain the coolant pump pulley.
    • Renew Part: Engine coolant pump pulley bolts Quantity: 1  .

      Torque Specification: 25 Nm

  14. G11695858

    Torque Specification: 25 Nm

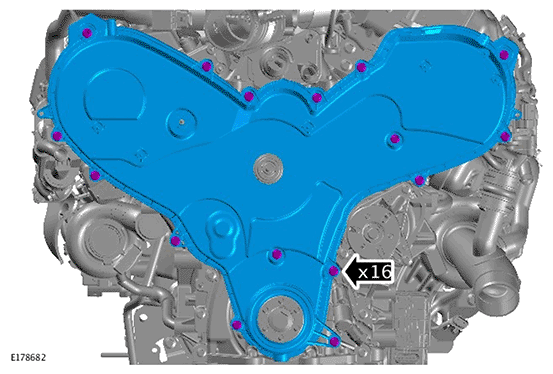

  15. G11695859

    Torque Specification: 10 Nm
