Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
  1. Refer to: TIMING COVER - TDV6 3.0L DIESEL - GEN 2

    Refer to: TIMING COVER

  2. Refer to: STARTER MOTOR
  3. G11601803
  4. Rotate the crankshaft clockwise to align the crankshaft alignment hole in the flywheel or flexplate with the block aperture.
  5. G11695829

    Check the camshaft pulley alignment holes are correctly aligned. If the alignment holes are not aligned, rotate the crankshaft one full turn clockwise.

  6. G11601805

    Special Tool(s): 303-1117

  7. G11695444

    Special Tool(s): 303-1126

  8. CAUTION: Do not use the special tools to lock the camshafts. Failure to follow this instruction may result in damage to the engine or the special tools.
    NOTE: Do not loosen the bolts more than 2 turns.
    G11695832
  9. CAUTION: Discard the component.
    G11695833
  10. CAUTION: Discard the component.

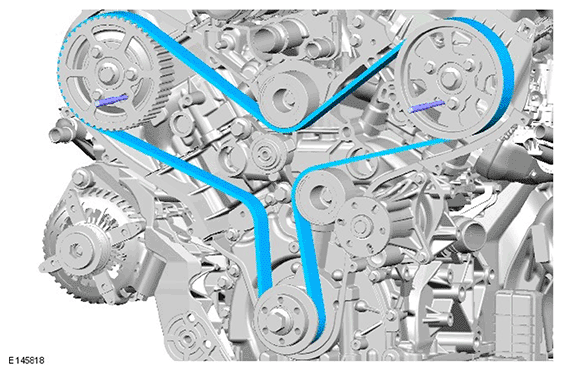

    G11695834
