Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

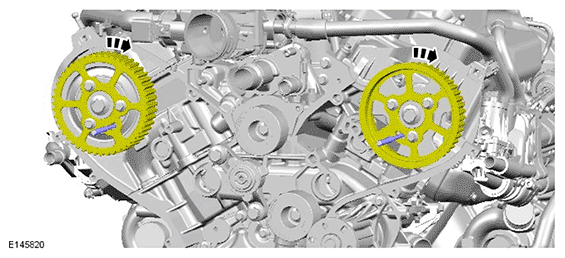

  1. G11695835

    Renew Part: Timing belt Quantity: 1  .

  2. CAUTION: Make sure that a new bolt is installed.

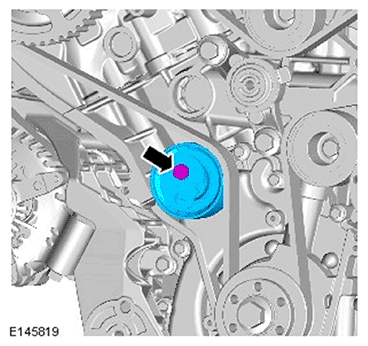

    G11695833

    Renew Part: Timing belt tensioner Quantity: 1  .

    Renew Part: Timing belt tensioner bolt Quantity: 1  .

  3. CAUTION: Make sure the camshaft pulleys remain in the clockwise position.

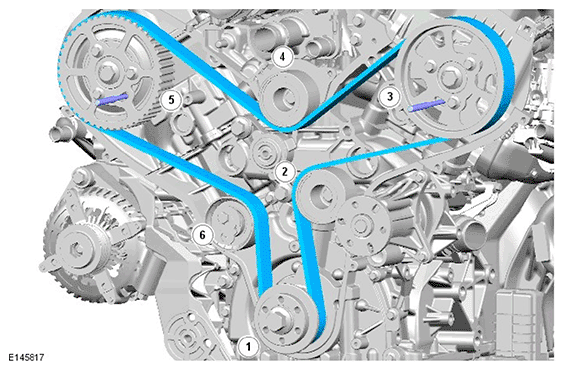

    G11695837
    • Install the new timing belt.
    • Starting at the crankshaft pulley, install the timing belt in a counter-clockwise direction, in the sequence shown.
    • Stage one: Attach the timing belt to the crankshaft pulley.
    • Stage two: Attach the timing belt to the idler pulley.
    • Stage three: Attach the timing belt to the left-hand camshaft pulley.
    • Stage four: Attach the timing belt to the idler pulley.
    • Stage five: Attach the timing belt to the RH camshaft pulley.
    • Stage six: Attach the timing belt to the timing belt tensioner.
  4. CAUTION: Make sure the timing belt tensioner window is aligned with the groove as illustrated.

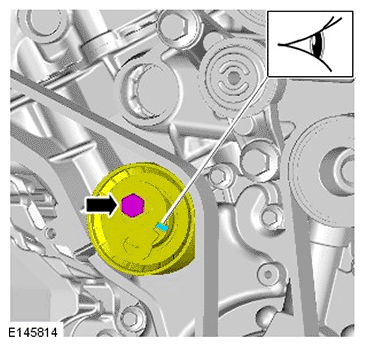

    G11695838
    • Tension the timing belt.
    • Rotate the tensioner assembly counter-clockwise.
    • Torque Specifications:

      Stage 1: 10 Nm

      Stage 2: 65°

  5. CAUTION: Do not use the special tools to lock the camshafts. Failure to follow this instruction may result in damage to the engine or the special tools.

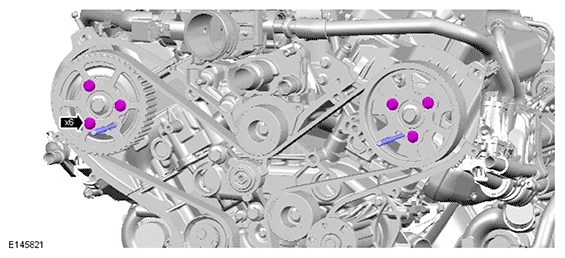

    G11695832
    • Using a suitable tool, counterhold the camshaft pulley center retaining bolts.
    • Torque Specification: 23 Nm

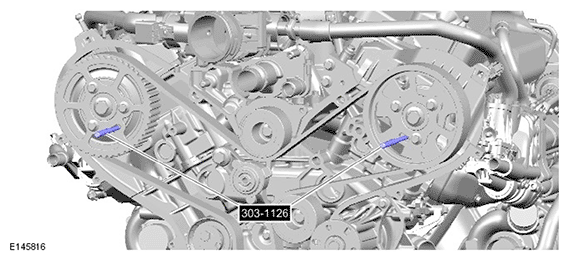

  6. G11695444

    Special Tool(s): 303-1126

  7. G11601805

    Special Tool(s): 303-1117

  8. CAUTION: Only rotate the crankshaft clockwise.

    Rotate the engine two complete turns clockwise.

  9. G11601805

    Special Tool(s): 303-1117

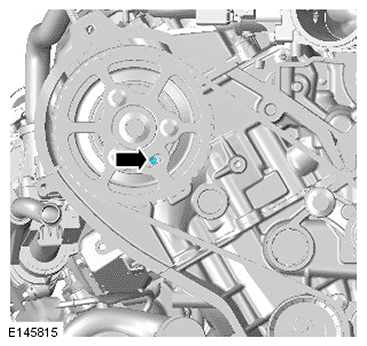

  10. G11695829
    • Install the special tools to the exhaust camshaft pulleys.
    • If the special tool does not fit correctly, repeat the timing belt installation procedure.
    • Remove the special tools from the camshaft pulleys.
  11. G11601805

    Special Tool(s): 303-1117

  12. G11601803
  13. Refer to: STARTER MOTOR
  14. Refer to: TIMING COVER

    Refer to: TIMING COVER - TDV6 3.0L DIESEL - GEN 2
