Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Make sure that the mating faces are clean and free of corrosion and foreign material.

NOTE: Install a new gasket.

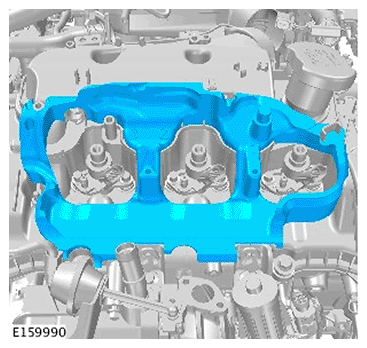

Renew Part: Camshaft cover gasket Quantity: 1 .

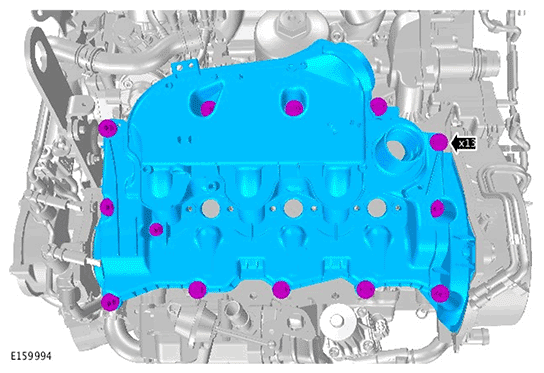

Torque Specification: 10 Nm

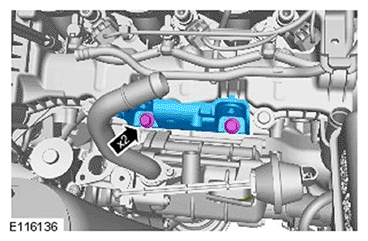

Torque Specification: 24 Nm

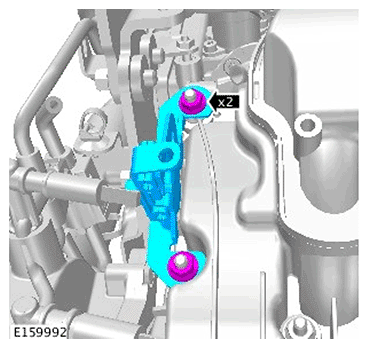

Torque Specification: 9 Nm

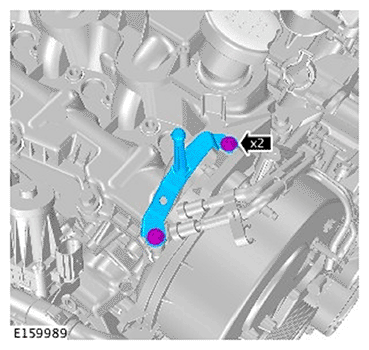

Torque Specification: 9 Nm

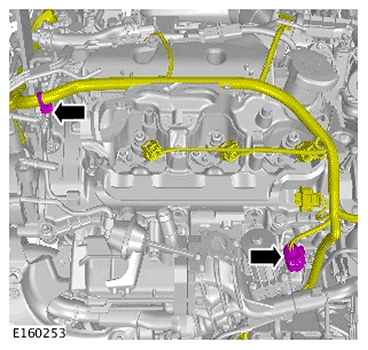

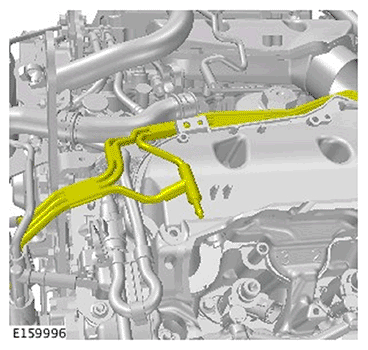

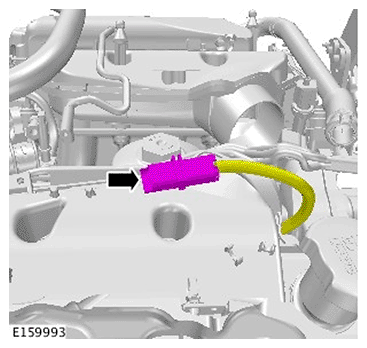

NOTE: This step is only required if previously removed.
CAUTION: Make sure that new sealing washers are installed.

NOTE: This step is only required if new components are not installed.
Renew Part: Fuel injector washer(s) Quantity: 1 .

Renew Part: Fuel injector O-ring seals Quantity: 1 .

CAUTION: Make sure that the area around the open fuel injector ports are clean and free of foreign material and lubricant prior to installing the fuel injector.

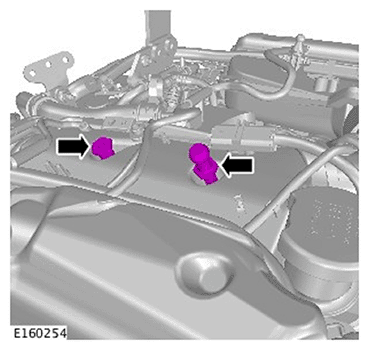

NOTE: Tighten the retaining bolts evenly and progressively.
Torque Specification: 9 Nm

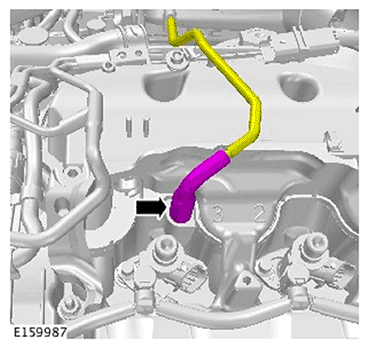

CAUTION: Be prepared to collect escaping fuel.

NOTE: Make sure that the fuel injector return line has a maximum of 8 uses.
Install the 2 remaining fuel injectors.
Refer to: INTAKE AIR SHUTOFF THROTTLE
Refer to: RIGHT FUEL RAIL
Refer to: TIMING BELT
Connect the battery ground cable
Refer to: SPECIFICATIONS
