Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Make sure that new nuts are installed.

NOTE: Install a new gasket.

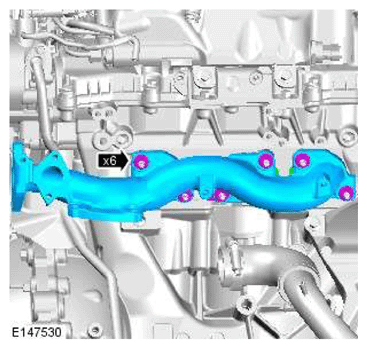

Renew Part: Exhaust manifold nuts Quantity: 6 .

Renew Part: Exhaust manifold gasket Quantity: 1 .
NOTE: Tighten the bolts in the indicated sequence.

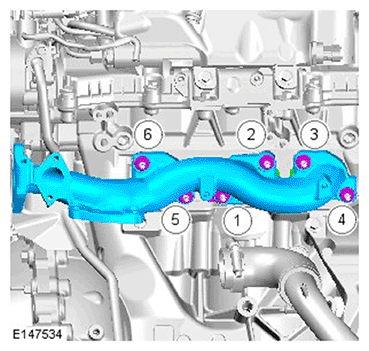

Fig 1: Exhaust Manifold Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque Specification: 28 Nm
CAUTION: Install new studs.

NOTE: Install a new gasket.

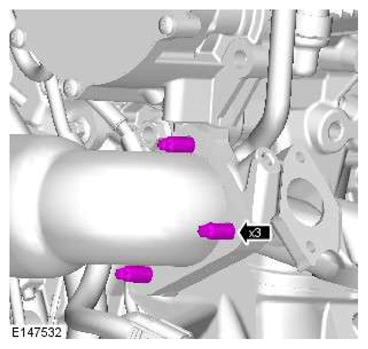

Renew Part: Exhaust manifold cross-over pipe studs Quantity: 3 .

Torque Specification: 13 Nm

CAUTION: Make sure that new nuts are installed.

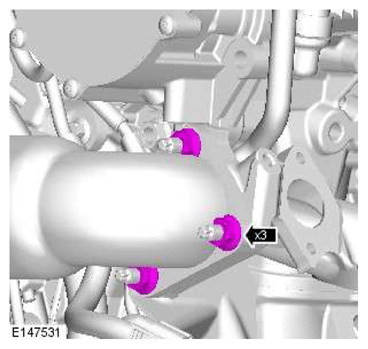

Renew Part: Exhaust manifold cross-over pipe nuts Quantity: 3 .

Torque Specification: 24 Nm

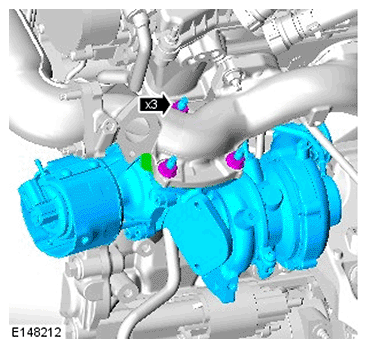

WARNING: Make sure that new nuts are installed.

CAUTION: Make sure that the area around the component is clean and free of foreign material.
Renew Part: Turbocharger to exhaust manifold gasket Quantity: 1 .

Renew Part: Exhaust manifold to turbocharger nuts Quantity: 3 .

Torque Specification: 24 Nm

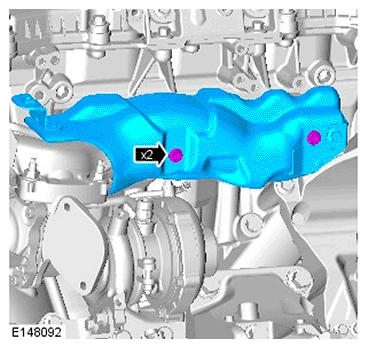

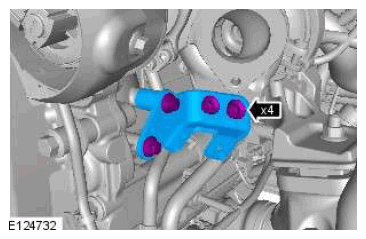

CAUTION: Apply Loctite 243 to the bolts.

NOTE: Make sure to clean the threads prior to installation.

Torque Specification: 32 Nm
NOTE: Tighten the bolts in the indicated sequence.

Fig 2: Exhaust Manifold Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque Specification: 28 Nm
Torque Specification: 10 Nm

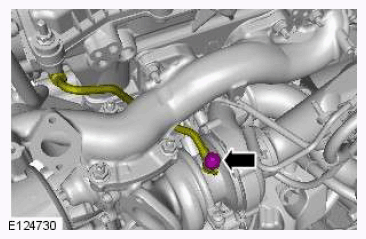

CAUTION: Make sure that new sealing washers are installed.
Renew Part: Turbocharger oil feed pipe banjo bolt washers Quantity: 1 .

Renew Part: Turbocharger oil feed pipe banjo bolt Quantity: 1 .

Torque Specification: 30 Nm

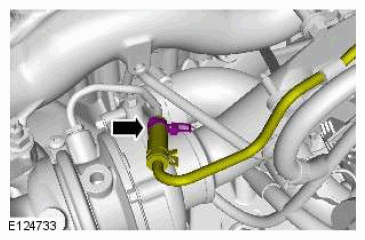

Torque Specification: 11 Nm

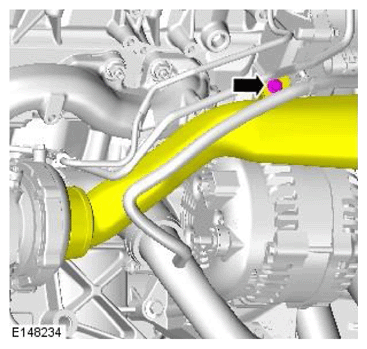

Torque Specification: 9 Nm

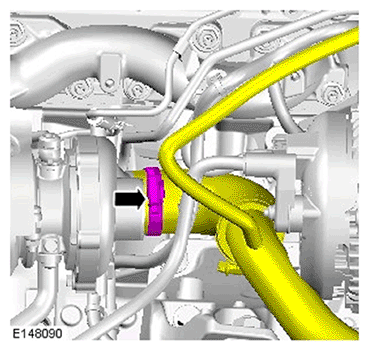

NOTE: Install new gaskets.

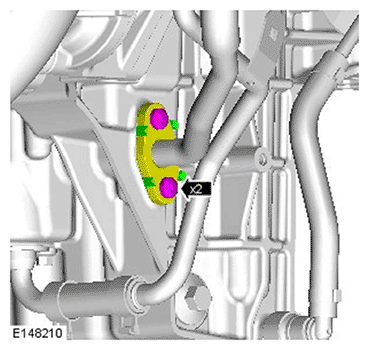

Renew Part: Turbocharger oil return pipe gasket(s) Quantity: 1 .

Torque Specification: 9 Nm

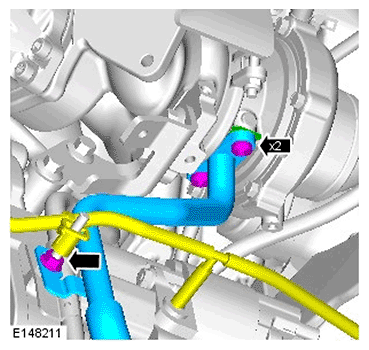

NOTE: Install a new gasket.

Renew Part: Turbocharger oil return pipe gasket(s) Quantity: 1 .

Torque Specification: 9 Nm
Refer to: RIGHT EXHAUST GAS RECIRCULATION VALVE
Refer to: ENGINE OIL DRAINING AND FILLING
