Removal And Installation: Removal
WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.
- Refer to: SPECIFICATIONS
-
CAUTION: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
Raise and support the vehicle.
- Refer to: EXHAUST SYSTEM - VEHICLES WITHOUT: DIESEL PARTICULATE FILTER (DPF)
- Refer to: RIGHT EXHAUST GAS RECIRCULATION VALVE

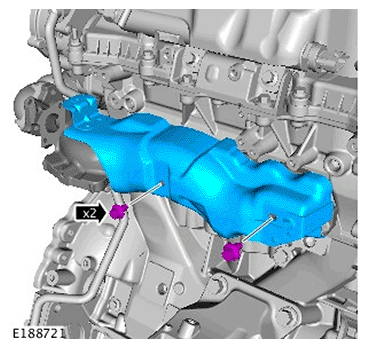

Torque Specification: 11 Nm

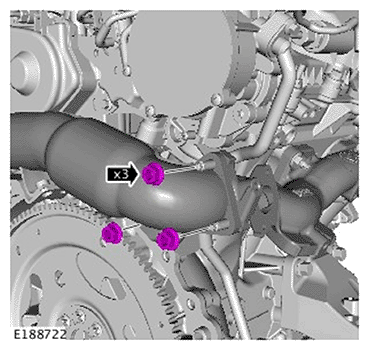

- CAUTION: Discard the nuts.
Renew Part: Exhaust manifold cross-over pipe nuts Quantity: 1 .
Torque Specification: 24 Nm

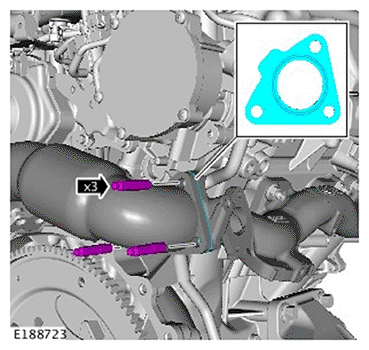

- CAUTION: Discard the studs and gasket.
Renew Part: Crossover pipe gasket Quantity: 1 .
Renew Part: Exhaust manifold cross-over pipe studs Quantity: 1 .
Torque Specification: 13 Nm

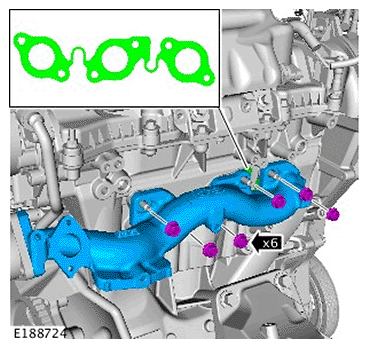

- CAUTION: Discard the nuts and gasket.
Renew Part: Exhaust manifold gasket Quantity: 1 .
Renew Part: Exhaust manifold nuts Quantity: 1 .
