Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
  1. CAUTION: Make sure that the mating faces are clean and free of foreign material.

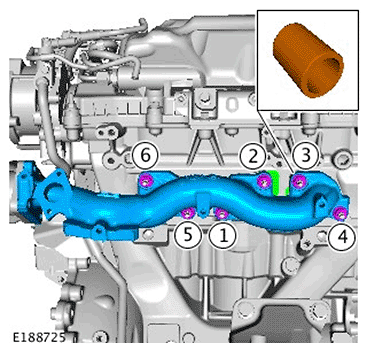

    Fig 1: Exhaust Manifold Retaining Nuts Tightening Sequence
    G11695723Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Tighten the exhaust manifold retaining nuts in the sequence shown.

    Torque Specifications:

    Stage 1: 5 Nm

    Stage 2: 28 Nm

  2. To install, reverse the removal procedure.
