Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the startup battery ground cable.

    Refer to: SPECIFICATIONS

  2. Remove the generator.

    Refer to: GENERATOR

  3. NOTE:
    • Make sure to clean the threads prior to installation.
    • Right hand drive only.
    G11712500

    Discard the bolt.

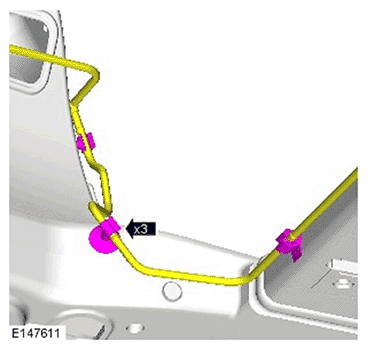

  4. G11695634
  5. G11695635
  6. NOTE: Left-hand shown, right-hand similar.
    G11695636
  7. G11695637
  8. G11695615
  9. CAUTION:
    • Support the engine on a jack. The angle may need to be adjusted during this procedure.
    • Use a wooden block to protect the oil pan when supporting the engine.
    G11695616

    Using a suitable hydraulic jack, raise and support the engine.

  10. G11695640
  11. G11695618
  12. G11695619
