Removal And Installation: Installation
WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

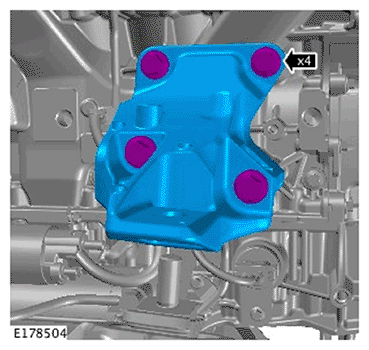

Only tighten the bolts finger tight at this stage.
Torque Specification: 115 Nm

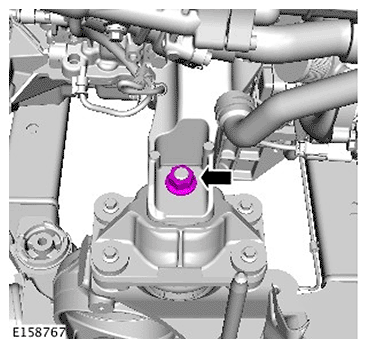

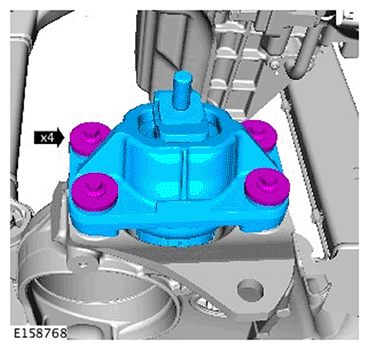

- Lower the engine onto the engine mounting.
Only tighten the nut finger tight at this stage.
-
Torque Specification: 40 Nm
Torque Specification: 130 Nm
Torque Specification: 25 Nm

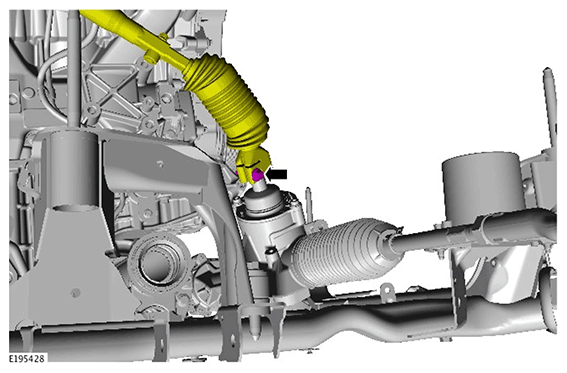

- Install a new bolt.
- Torque Specification: 30 Nm
- Renew Part: Steering column lower shaft lower bolt Quantity: 1 .
Torque Specification: 10 Nm
Torque Specification: 10 Nm
- Install the generator.
Refer to: GENERATOR

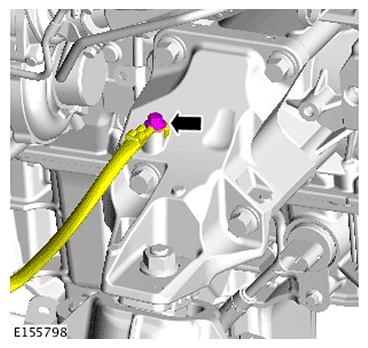

- Connect the startup battery ground cable.
Refer to: SPECIFICATIONS
