Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Make sure that the mating faces are clean and free of foreign material.
- Clean and inspect the cylinder head and cylinder block.
- Check the cylinder head face for distortion, across the center and from corner to corner. Refer to: Cylinder Head Distortion
  Refer to: CYLINDER HEAD GASKET SELECTION - TDV6 3.0L DIESEL
CAUTION: Only tighten the bolts finger-tight at this stage.

NOTE: Install a new gasket.

Renew Part: Cylinder head gasket Quantity: 1 .

Renew Part: Cylinder head bolts Quantity: 1 .
NOTE: Tighten the bolts in the indicated sequence.

Fig 1: Cylinder Head Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Torque Specification: 80 Nm
NOTE: Tighten the bolts in the indicated sequence.

Fig 2: Cylinder Head Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Torque Specification: 180°
Refer to: RIGHT CAMSHAFT
Torque Specification: 10 Nm
Torque Specification: 10 Nm
WARNING: Make sure that new nuts are installed.

CAUTION: Install the nuts finger tight before final tightening.

NOTE: Install a new gasket.

Renew Part: Exhaust manifold gasket Quantity: 1 .
NOTE: Tighten the bolts in the indicated sequence.

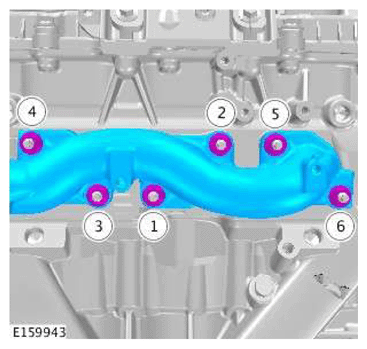

Fig 3: Exhaust Manifold Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque Specification: 28 Nm
CAUTION: Install new studs.

Renew Part: Exhaust manifold cross-over pipe studs Quantity: 1 .

Torque Specification: 13 Nm

WARNING: Make sure that new nuts are installed.
Renew Part: Exhaust manifold cross-over pipe nuts Quantity: 1 .

Torque Specification: 24 Nm
Refer to: RIGHT TURBOCHARGER
Connect the battery ground cable
Refer to: SPECIFICATIONS
