Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable.

    Refer to: SPECIFICATIONS

  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: STARTER MOTOR
  4. Refer to: BRAKE VACUUM PUMP - TDV6 3.0L DIESEL
  5. Refer to: RIGHT VALVE COVER
  6. G11601803
  7. Rotate the crankshaft clockwise to align the crankshaft alignment hole in the flywheel or flexplate with the block aperture.
  8. G11601804

    Check the camshaft pulley alignment holes are correctly aligned. If the alignment holes are not aligned, rotate the crankshaft one full turn clockwise.

  9. G11601805

    Install the special tool.

    Special Tool(s): 303-1117

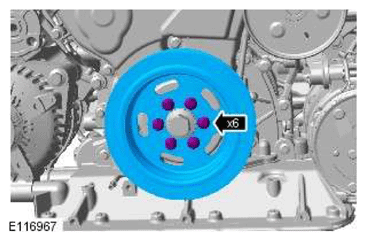

  10. G11601806
    CAUTION: Discard the bolts.

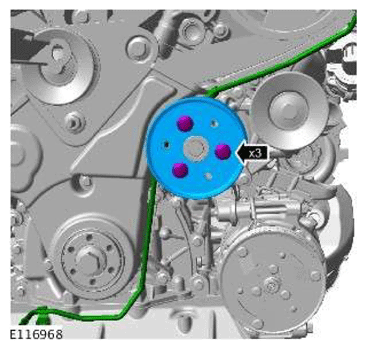

  11. G11601807

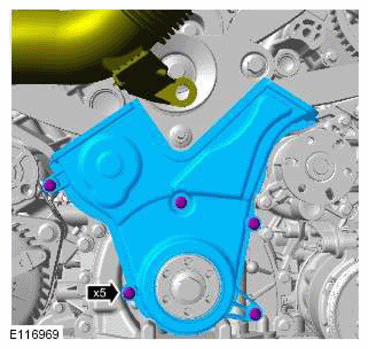

  12. NOTE: Discard the gasket.
    G11601808
  13. G11601809
  14. G11601810

    Special Tool(s): 303-1126

  15. CAUTION: Do not use the special tools to lock the camshafts. Failure to follow this instruction may result in damage to the engine or the special tools.
    NOTE: Do not loosen the bolts more than 2 turns.
    G11601811
  16. CAUTION: Discard the component.
    G11601812
    CAUTION: Discard the component.
  17. G11601813
  18. G11601814
  19. G11601815

    Install the special tool.

    Special Tool(s): 303-1124

  20. G11601816
  21. G11601817

    Remove the special tool.

    Special Tool(s): 303-1124

  22. G11601818
  23. G11601773
    • Reposition the secondary timing chain tensioner.
    • Retain the secondary timing chain tensioner plunger.
  24. G11601820

    Remove the camshaft bearing caps evenly.

  25. G11601775
    CAUTION: Discard the seal.
  26. G11601822
  27. G11601777

    Remove the RH bank camshafts and secondary timing chain tensioner assembly.

  28. G11601778

    Remove the secondary timing chain tensioner assembly.

  29. G11601825

    Remove the secondary timing chain from the camshafts.
