Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Disconnect the battery ground cable.

Refer to: SPECIFICATIONS
Refer to: ENGINE OIL DRAINING AND FILLING
Refer to: STARTER MOTOR
Refer to: DIFFERENTIAL CASE

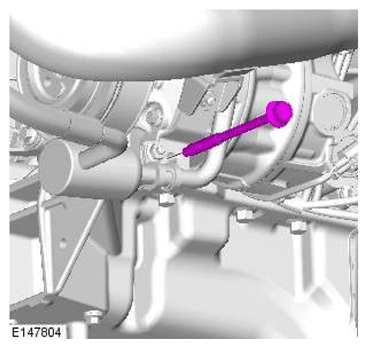

Torque Specifications:

M10 40 Nm

M8 24 Nm

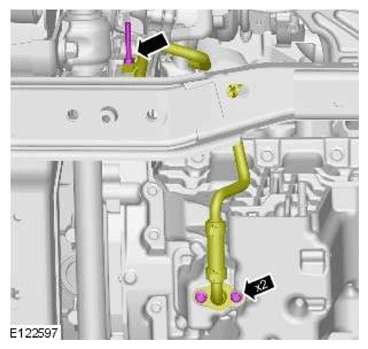

CAUTION: A new gasket must be installed.

NOTE: Remove and discard the gasket.

Renew Part: Turbocharger oil return pipe gasket(s) Quantity: 1 .

Torque Specification: 10 Nm

CAUTION: A new gasket must be installed.

NOTE: Remove and discard the gasket.
Renew Part: Turbocharger oil return pipe gasket(s) Quantity: 1 .

Torque Specification: 10 Nm

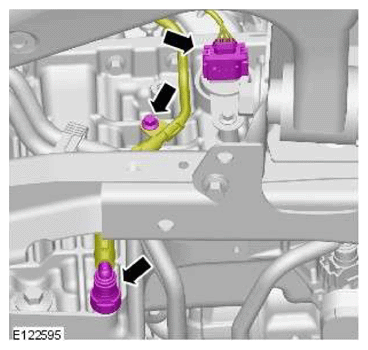

Torque Specification: 25 Nm

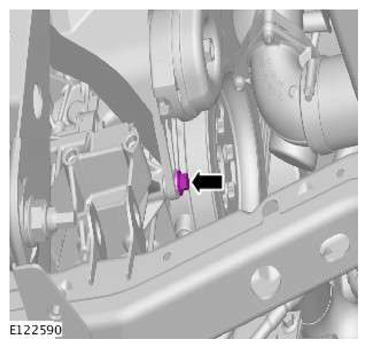

Torque Specification: 24 Nm
Torque Specification: 10 Nm
CAUTION: A new gasket must be installed.

NOTE: Remove and discard the gasket.

Torque Specification: 10 Nm

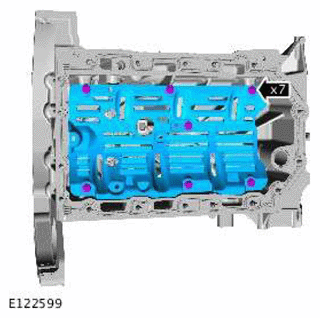

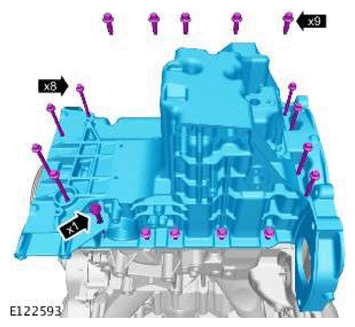

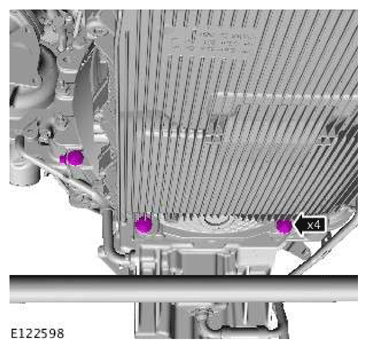

CAUTION: Note the position of the bolts, prior to removal.
- Torque Specification:
  M8 23 Nm
- Torque Specification:
  M6 10 Nm

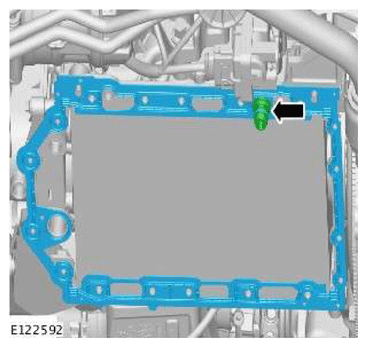

CAUTION: A new gasket must be installed.

NOTE: Remove and discard the gasket.

Renew Part: Oil pan gasket Quantity: 1 .

NOTE: Do not disassemble further if the component is removed for access only.
Torque Specification: 10 Nm
Torque Specification: 10 Nm

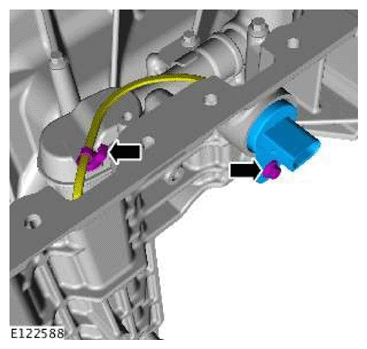

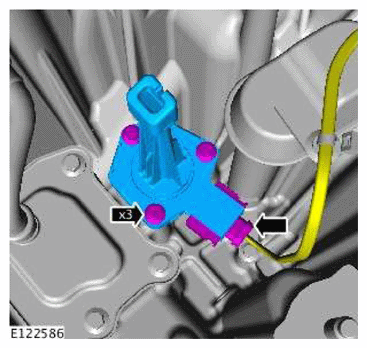

CAUTION: A new O-ring seal must be installed.

NOTE: Remove and discard the O-ring seal.

Renew Part: Oil level gauge O-ring seal Quantity: 1 .

Torque Specification: 10 Nm

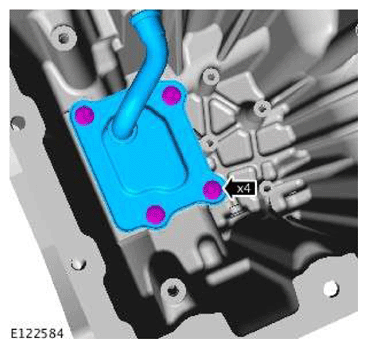

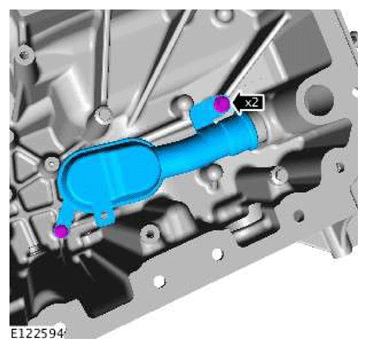

NOTE: Discard the oil pick up pipe.

Renew Part: Oil pick up pipe Quantity: 1 .

Torque Specification: 10 Nm
NOTE: Discard the vent tube.

Renew Part: Vent tube Quantity: 1 .

Torque Specification: 10 Nm
