Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
  1. Refer to: SPECIFICATIONS
  2. Refer to: TIMING COVER

    Refer to: TIMING COVER - TDV6 3.0L DIESEL - GEN 2

  3. Refer to: LEFT FUEL INJECTORS
  4. Refer to: LEFT FUEL RAIL
  5. Refer to: INTAKE AIR SHUTOFF THROTTLE

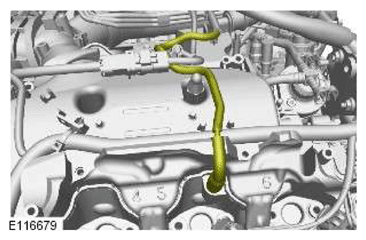

  6. G11602215

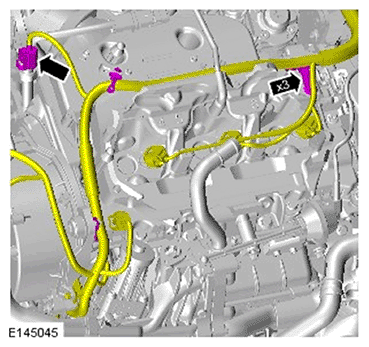

  7. G11695865

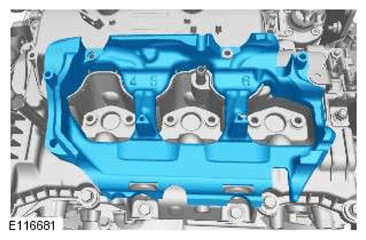

  8. G11602217

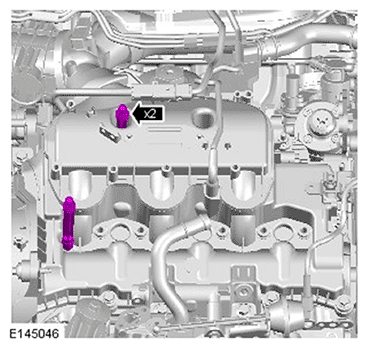

  9. G11695867

    Torque Specification: 5 Nm

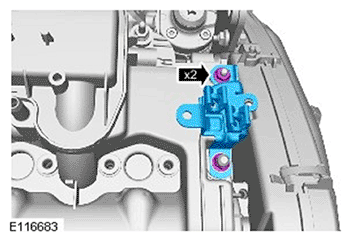

  10. G11695868

    Torque Specification: 10 Nm

  11. G11602220

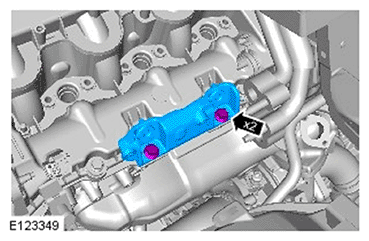

  12. G11695870

    Torque Specification: 23 Nm

    CAUTION: Make sure that the mating faces are clean and free of corrosion and foreign material.
    NOTE: Install a new gasket.

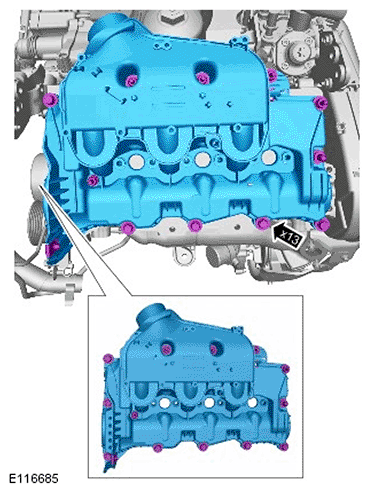

  13. G11695871

    Torque Specification: 10 Nm
