Removal And Installation: Removal
WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Some components shown removed for clarity.
- Disconnect the battery ground cable.
Refer to: SPECIFICATIONS
- Refer to: AIR CONDITIONING COMPRESSOR - TDV6 3.0L DIESEL
-
CAUTION: Use a wooden block to protect the oil pan when supporting the engine.

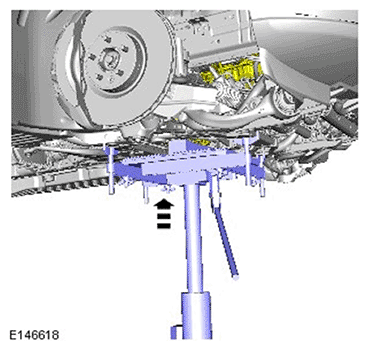

Using a suitable hydraulic jack, raise and support the engine.
-
WARNING:
Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
Raise and support the vehicle.
